Discover Harmony ST6

Harmony ST6 is a cost-effective and best-in-class quality HMI panel with good graphics and stylish design. It is available in three models: Basic HMI, Basic Web HMI, Basic Modular HMI.• High-resolution widescreen format with 16M colours• Wide range of display size: 4W to 15W• Refined HW design with Aluminium front panel (Basic HMI, ST6)• Unique pushbutton 22mm mounting system (Basic Modular HMI, STM6)• Intuitive design powered by EcoStruxure Operator Terminal Expert software• Pre-installed browser to visualise all devices with HTML5 server (Basic Web HMI, STW6)

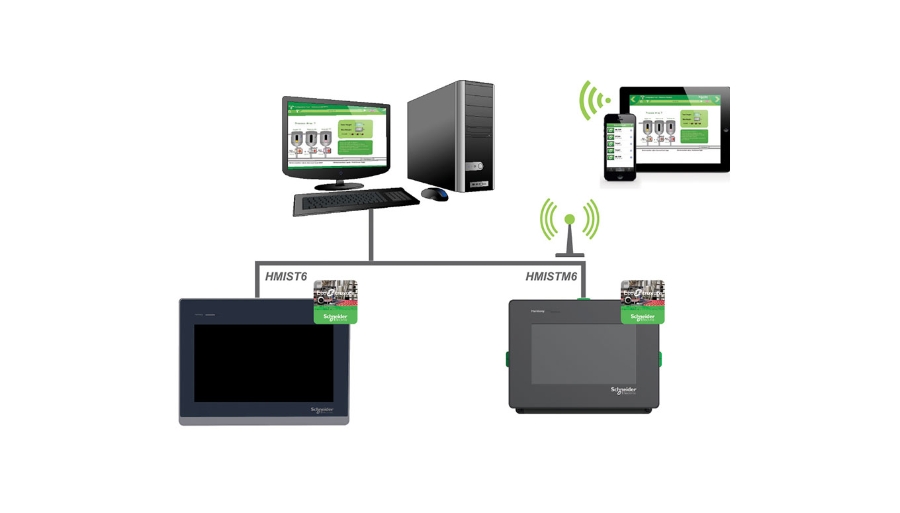

Web Viewer feature of EcoStruxure Operator Terminal Expert:

• Enables to watch/operate the HMI screen remotely with the mirroring function• Runs on a generic web browser for all devices• Easy to configure and allows up to 3 simultaneous remote connections

Pre-installed EcoStruxure Secure Connect Advisor allows remote access to the device via a private connection.

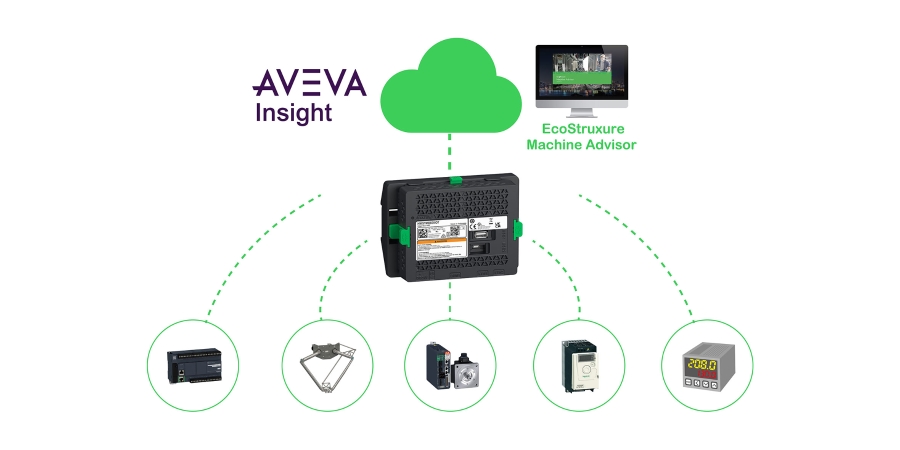

EcoStruxure Machine SCADA Expert functions enables storing Data everywhere:

• Easy settings of Data for Clouds like Machine Advisor & AvevaInsight Links ( No script required )• Small Edge features with data stamping and data treatment ( filter, convert, compute, condition ) before transfer to the Cloud.• Local storage & External Data Base storage

Video presentations

  • Easy like a push button

    Basic Modular HMI, STM6 has a unique pushbutton 22mm mounting system to reduce installation time drastically.• Easy, quick, and tool-free mount on cabinet with 22mm hole• Easy for maintenance with modularity (spare part models)• Easy for specific applications with separation cable accessory

  • Easily displays HTML5 information on-site

    Harmony STW6 is a special version that comes with a pre-installed browser. It provides a ready-to-use and agnostic terminal that enables visualisation of all devices with an HTML5 server.

  • Harmony Edge Box HMI

    Harmony Edge Box HMI, new Box products at the Edge level configured by EcoStruxure Machine SCADA Expert Software.

Benefits of Harmony ST6

  • Efficiency

    High-resolution screen and terminal ST6/STM6, with multi-screen and layout objects (Dock Panel) functions, combine more information in one page facilitating easy operation.

  • Flexibility

    3 types of models to meet your needs- Basic HMI, Basic Web HMI, and Basic Modular HMI.

  • Digitisation

    Remote visualisation of HMI application with Web Viewer feature and OPC-UA server communication to connect OT to IT.

  • Protection

    End-to-end cyber security including remote connections.

How-to videos

  • Harmony STM6 22mm mounting video

  • How to make a simple screen

Features

Facts about Harmony ST6

• High-resolution screen powered by EcoStruxure Operator Terminal Expert software, with multi-screen and layout objects (Dock Panel) functions, to combine more information in one page for easy operation. • Tool-free fastener for fast and easy mounting. • Ability to access all HTML5 servers with Basic Web HMI, Harmony STW6 version. • Availability of Web Viewer function on Harmony HMIST6 and HMISTM6 versions that allows remote visualisation of the HMI application on PC/Tablet/Smartphone. • Basic HMI, Harmony ST6, and STM6 with the best-in-class user interface for multi-device connection: 2 x Ethernet ports with Dual IP, 2x COM (except 4” model)/USB host, and device. • Basic Web HMI, Harmony STW6 with 2 x Ethernet ports with one IP address for daisy chain connection (except 4'' model). • Enhanced cybersecurity from application to firmware level. • EcoStruxure Secure Connect Advisor, pre-installed on Harmony HMIST6 and HMISTM6 versions, for secure remote maintenance of HMI and connected devices. • Edge Box HMI is an affordable Box to get ready for Cloud Service with EcoStruxure Machine SCADA Expert software.

Additional resources

Similar products you might be interested in

Models

Basic HMI, ST6

Basic HMI configured by EcoStruxure Operator Terminal Expert

4”W ~ 15”W

Panel cut-out installation with tool free fastener

EcoStruxure Operator Terminal Expert

Web HMI, STW6

Ready-to-use terminal to visualise all devices with an HTML5 server

4”W ~ 15”W

Panel cut-out installation with tool free fastener

N/A

Basic Modular HMI, STM6

Basic HMI with unique Push button 22mm mounting system

4”W, 7”W, Faceless

Push button 22mm mounting

EcoStruxure Operator Terminal Expert

Edge Box HMI

Edge Box HMI with 500 tags RunTime, ETH x 2, USB host/device, DC24V

Faceless

Push button 22mm mounting

EcoStruxure Machine SCADA Expert
