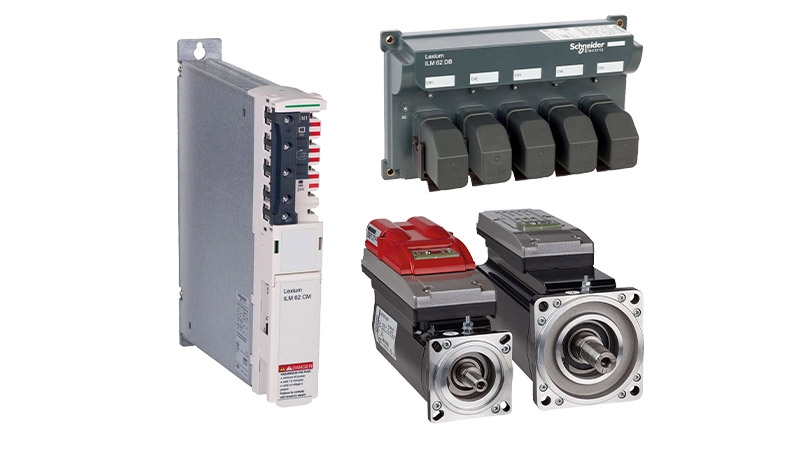

Discover Lexium 62 ILM
Discover Lexium 62 ILM
Integrated drives for various network topologies
Lexium 62 ILM integrated servo modules offer more than just compact drives: with their integrated drive electronics, they take a flexible approach to cabling, with prefabricated hybrid cables and distribution boxes, with various network topologies (line, tree, and daisy chain) alone or mixed.The only elements remaining in the cabinet are the shared power supply from the Lexium 62 series and a connection module, fully compatible with the Lexium 62 cabinet-based multiaxis servo system with quick front connection. Together, the drive and network solution form a true plug-and-play solution, controlled with all PacDrive LMC Eco and Pro 2 series motion.
Benefits of Lexium 62 ILM
Benefits of Lexium 62 ILM
Smaller cabinets, less wiring
Modular design
Advanced safety
Features
Features
Facts about Lexium 62 ILM
- Main characteristics
- Supply voltage: 250…700 VDC.
- 560 VDC Nominal / rated.
- Control voltage: 24 VDC (-20%… +25%).
- Brake supply voltage: 24 VDC (-20%… +25%).
- Cooling: passive
- Protection: IP65
- Wide range
- Flanges measure 70, 100, and 140 mm (2.756, 3.937, and 5.512 inches).
- Holding Torque ranges from 1.1 to 12.5 Nm (0.811 to 9.219 ft-lbf).
- Peak torques range fom 3.5 to 55 Nm (2.58 to 40.57 ft-lbf)
- Available features include built-in holding brake, a feathery key groove, single or multi-turn encoder.
- Motor protection rating IP54 with an IP65 shaft seal.
- Add-on module with eight digital inputs and outputs.
Applications
Machine control
Explore morePackaging
Know moreMaterial Handling
Know more
How-to videos
How-to videos

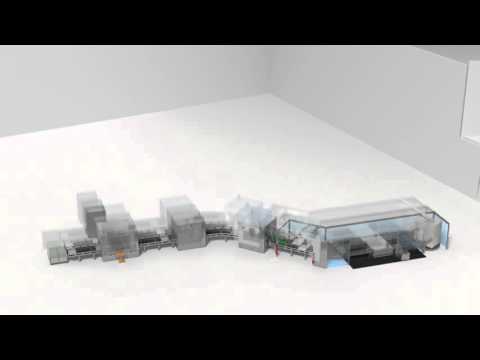

PacDrive3 - Scalable Automation Solution
