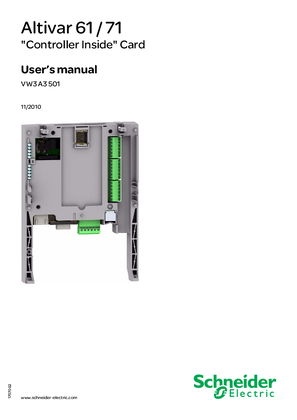

ATV61/71 Controller Inside manual - VW3A3501 Este documento contém informações atuais, mas pode fazer referência a produtos obsoletos.

This user guide provides information about the Controller Inside programmable card for Altivar 61/71 drives. It covers hardware setup, installation procedures, configuration, and operation details. The guide includes terminal descriptions, electrical characteristics, connection diagrams for CANopen bus integration, and diagnostics features. It explains how to use the card with both graphic display terminal and integrated display terminal, and provides information about programming capabilities using the PS 1131 software workshop. The Controller Inside card (VW3 A3 501) extends the drive's functionality by integrating control system functions with various I/O options. AI-assisted summary (Full document authored and validated by Schneider Electric experts).
