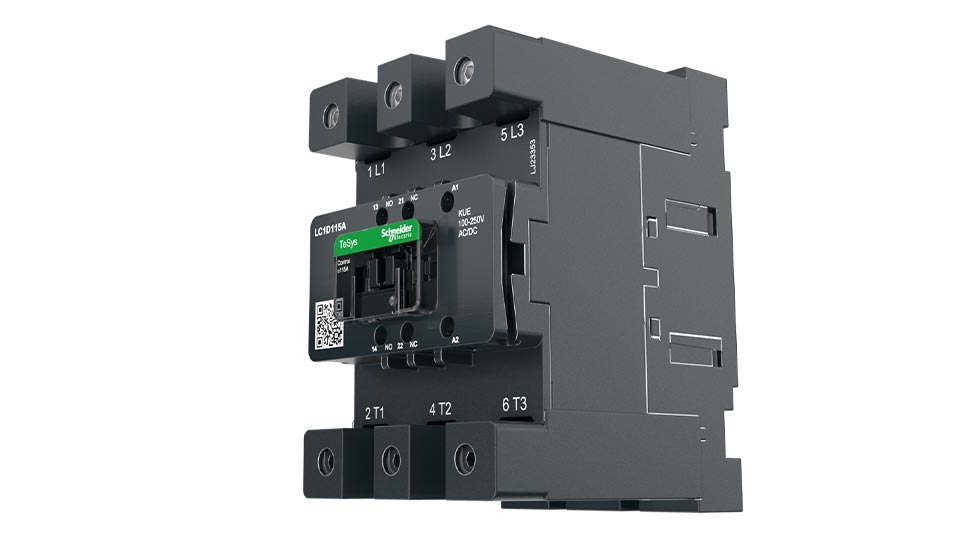

As the best selling line of contactors in the world, TeSys Deca offers multi-standard solutions, high reliability with long mechanical and electrical durability for different sizes, along with the most complete accessories in the industry.

TeSys Deca contactors leverage over 100 years of experience and innovation to control your motors.

Specifications:

AC & DC Coils 50/60 Hz available for whole range
DC low consumption with direct compatibility with 100 mA I/O PLC card from 9 to 38 A
DC low consumption with direct compatibility with 500 mA I/O PLC card from 40 to 80 A using TeSys D Green BBE 24 V electronic coil
Various types of connection available:
- Screw clamp terminals
- Everlink (40 to 80 A)
- Spring terminals (9 to 38 A and on control terminal up to 65 A)
- Lugs terminals
- Faston terminal (9 to 12 A)
High making and breaking capacity
1 NO & 1 NC integrated auxiliary contact in all 3-pole and 4-pole contactors
Safety application with all NC auxiliary contact certified as mirror contacts for IEC 60947-4-1
Up to 30 million mechanical operation cycles
Electrical cycles up to 3600 cycles per hour at ambient temperature
No derating up to 3000 m altitude
Wide range of working temperature: -25°C to 60°C

Dimensions: 4 width sizes available to cover all ratings

45 mm to 38 A
55 mm from 40 to 65 A
85 mm from 80 to 95 A
120 mm from 115 to 150 A

TeSys Deca benefits from a wide range of accessories for:

Additional auxiliary contacts: front or side mounted auxiliary contact blocks, time delay auxiliary blocks.
Contactors combination: reversing kits, low-speed / high-speed connection kits, changeover 4-pole kits, etc.
System assembly with other products: Power and auxiliary connection to circuit breaker and/or to overload relay.

The new TeSys Deca Greencontactor is equipped with an innovative electronic coil requiring up to 80% less energy (when sealed) than electro-mechanical contactors.

TeSys Deca Green contactors simplify your maintenance services with 90% less references needed.TeSys Deca Green contactors, associated with TeSys Deca electronic overload relays, reduce heat generation and energy consumption by up to 50%.
