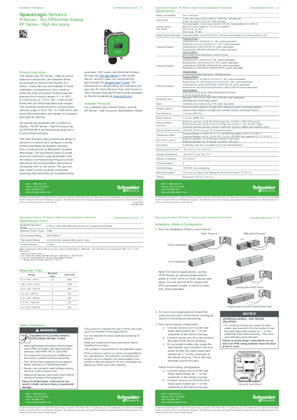

SpaceLogic EP Series - High Accuracy Dry Differential Analog Sensors, Installation Instructions

The SpaceLogic EP Series - High Accuracy pressure transducers can measure either air pressure or velocity with the flip of a switch. These devices are available in three installation configurations: duct, panel or universal. Duct and panel models have two pressure and velocity ranges: 0-1 in. WC / 0-3,000 ft/ min or 1-10 in. WC / 3,000-6,000 ft/min with four field-selectable sub-ranges. The universal model comes in one pressure/velocity range: 0-10 in. WC / 0-7,000 ft/min with seven field-selectable sub-ranges for pressure and eight for velocity. All variants are available with or without a display. The EP Series - High Accuracy has an IP65/NEMA 4 environmental rating and a 5-year limited warranty. The Veris Sensors App provides the ability to connect to a device and configure a variety of field-selectable parameters remotely from a smartphone via Bluetooth® wireless technology.
