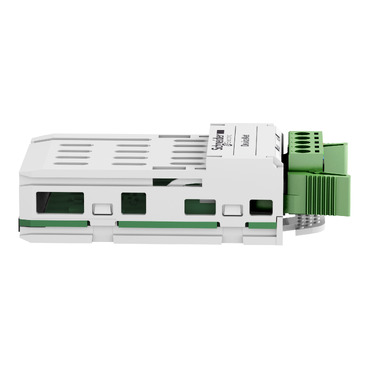

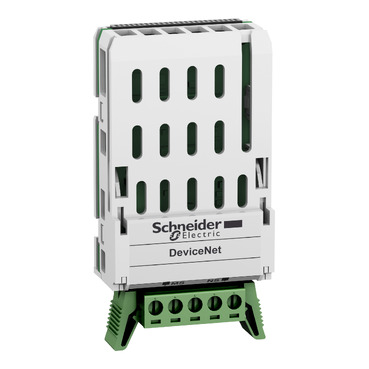

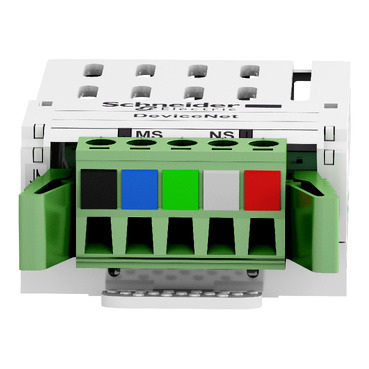

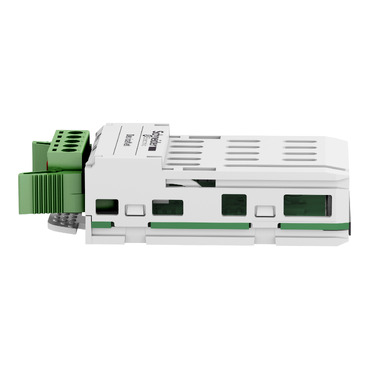

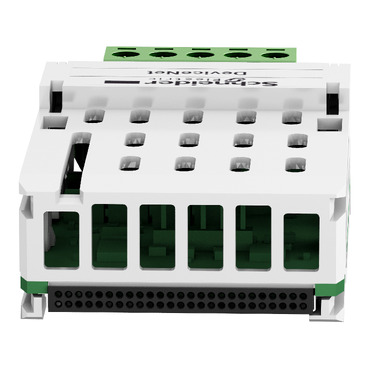

Devicenet communication module
VW3A3609
Tehnilised andmed
| Range of product | Altivar |
|---|---|
| Product or component type | Communication module |
| Range compatibility | Altivar Process Modular Altivar 32 Altivar Process ATV600 Altivar Machine ATV340 except Sercos drives Altivar Process ATV900 Altivar Machine ATV320 |
|---|---|
| communication port protocol | DeviceNet |
| Electrical connection | 1 connector 1 removable 5-way screw connector |
| Transmission rate | 125 kbps, 250 kbps and 500 kbps configurable |
| Maximum cable distance between devices | 100 m 500 kbps 500 m 125 kbps |
| Addressing | 1...63 configurable by graphic terminal/SoMove software |
| Communication service | Inputs : polled, change of state, cyclic Outputs : polled ODVA AC drive and CiA 402 profile Auto device replacement Communication monitoring time out adjustable by DeviceNet configurator |
| Display type | 1 LED MS (Module Status) 1 LED NS (Network Status) |
| diagnostic function | Control mode received by graphic terminal Received instruction by graphic terminal |
| Bus profile | CIP AC Drive CiA 402 |
| Net weight | 0,3 kg |
| Pakendi tüüp 1 | Db |
|---|---|
| Ühikute arv pakendis 1 | 1 |
| Package 1 Height | 4,7 cm |
| Pakendi laius 1 | 6,2 cm |
| Pakendi pikkus 1 | 8,9 cm |
| Pakendi kaal 1 | 66,0 g |
| Pakendi tüüp 2 | Doboz |
| Ühikute arv pakendis 2 | 100 |
| Pakendi kõrgus 2 | 30,0 cm |
| Pakendi laius 2 | 30,0 cm |
| Pakendi pikkus 2 | 40,0 cm |
| Pakendi kaal 2 | 7,098 kg |
| Garantii | 18 months |
|---|
