Ideal Circuit Breaker for modernization and extension
VAH is the perfect choice as a flexible and robust Medium Voltage Circuit Breaker, suitable for power plants and generator switchboards. It has been specifically designed to handle demanding mechanical and electrical switching applications, making it an excellent solution for OEMs involved in power generation projects.
Benefits of VAH
Benefits of VAH
Simplicity
Efficiency
Reliability
Features
Features
Facts about VAH

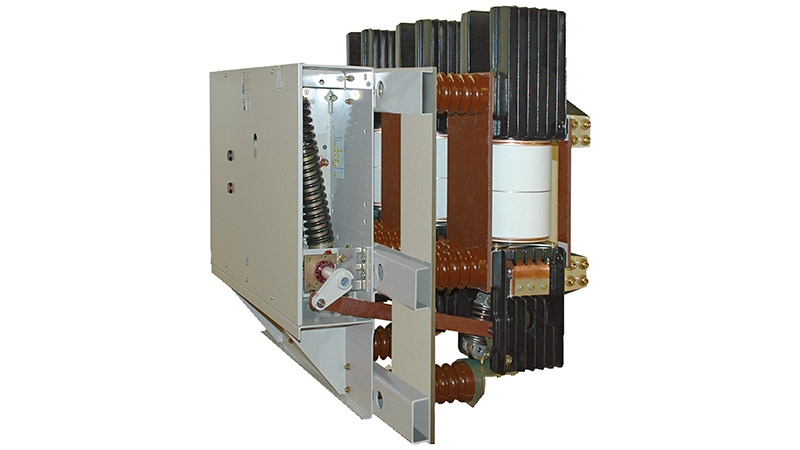

VAH is a compact, high duty vacuum circuit breaker for MV primary distribution. It can be used in a range of application fields from power plants and generators up to 200 MVA, to utility substations and industries. Two main versions are available:
- VAH for High current switching
- VAH for Generator switching.
- 13.8 kV / 5,000 A (8,000 A with forced cooling) / 63 kA
- 17.5 kV / 5,000 A (8,000 A with forced cooling) / 50 kA
- Standard switching cycles 10,000 (mechanically and electrically)
- Loose type circuit breaker or trolley version
- Full LV control option list available
- Meets IEC and CNS regulations
- 15 kV / 5,000 A (8,000 A with forced cooling) / 50 A
- 17.5 kV / 5,000 A / 63 kA
- Power range up to 200 MVA
- Loose type circuit breaker or trolley version
- Full LV control option list available
- Generator circuit breaker standard IEEE C37.013
