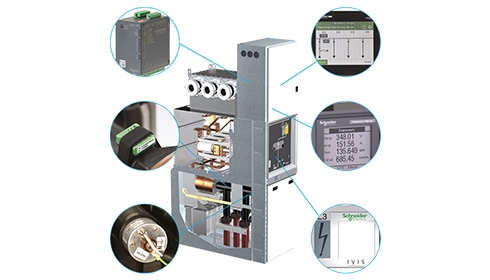

This compact and modular MV GIS switchgear for primary distribution uses vacuum circuit breaker technology. It is suitable for a wide range of application fields and can achieve high performances within an improved footprint, being easy to install (plug and play) and maintain:
• Gas-insulated switchgear for MV primary distribution

• Rated up to 40.5 kV, 4000 A, 40 kA - 3 s

• Single or double busbar

• Designed for “next to wall” installation

• Delivered ready to connect

• Innovative B-Link busbar

• Inner and outer cone cable connection

• Current and voltage transformer on busbar and cable side

• Available as a 1- and 2-phase solution for Railway application

• Intelligent Gas Density Information System (IDIS)
