Discover Zelio Soft
Discover Zelio Soft
About Zelio SoftZelio Soft 2 is the free configuration software for Zelio Logic smart relays, designed for the management of simple automation systems. It enables:• Programming in ladder language or function block diagram (FBD) language• Simulation, monitoring, and supervision• Uploading and downloading of programs• Print-out of customized files• Automatic program compilation• Online help
General information on Zelio Soft
What Zelio Soft can do for you
What Zelio Soft can do for you

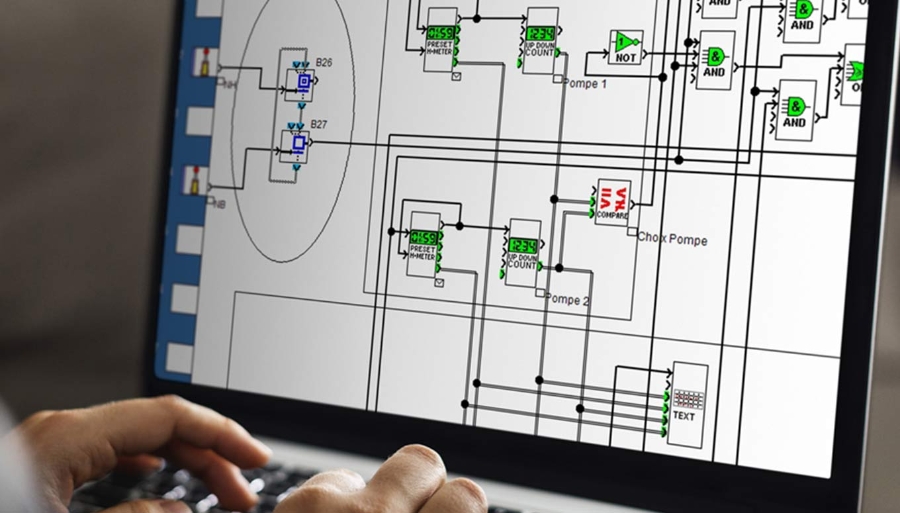

Simulation

The simulation mode in Zelio Soft 2 is used to test a program without the need for Zelio Logic smart relay to:• Enable discrete inputs.• Display output status.• Vary the voltage of the analog inputs.• Enable the programming buttons.• Simulate application program in real-time or in accelerated time.• Display the different active program elements dynamically in red.

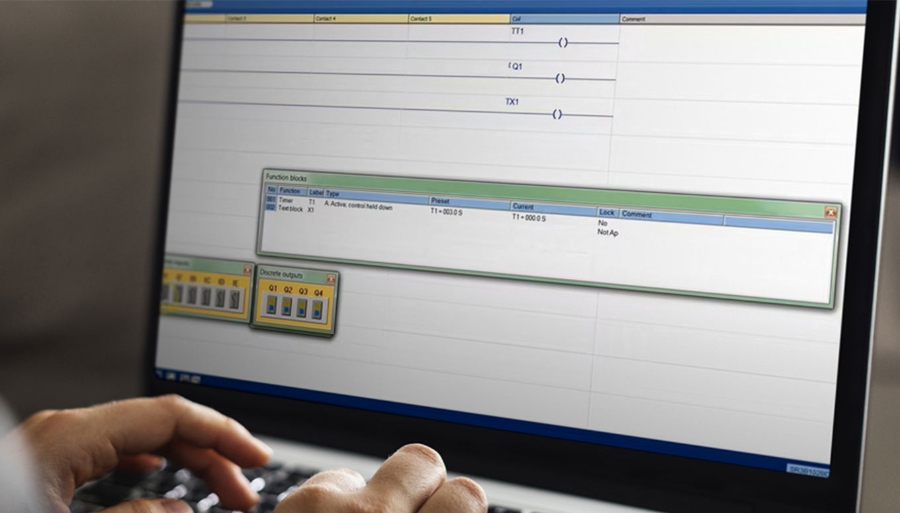

Monitoring

The monitoring feature is used to test the program executed by the smart relay to:• Display the program online.• Force inputs, outputs, auxiliary relays, and current function block values.• Adjust the date and time.• Switch from STOP mode to RUN mode and vice versa.
User interfaces

Zelio Soft 2 software improves the use of user interfaces with the following functions:• Split wiring sheet: to display two separate parts of the wiring sheet on the same screen• Replace function block: to replace a block without losing input and output connections• Time Prog simulation: Ladder or FBD program simulation mode allows the program to be debugged by simulating it on the software workshop host computer.
Demo
Demo
Learn how to use Zelio Soft
Benefits of Zelio Soft
User-friendliness
Get to grips with Zelio Soft in an hour. It's extremely simple and user-friendly software to configure your Zelio Logic smart relays.
Freedom
Zelio Soft speaks your language. It's multilingual and open.
Flexible programming
It satisfies all your requirements with real programming using function block (FBD) or contact language (LADDER).
Features
Features
Facts about Zelio Soft
How-to videos
Transferring Zelio Smart Relay Programs To & From SR2MEM02 Cartridge

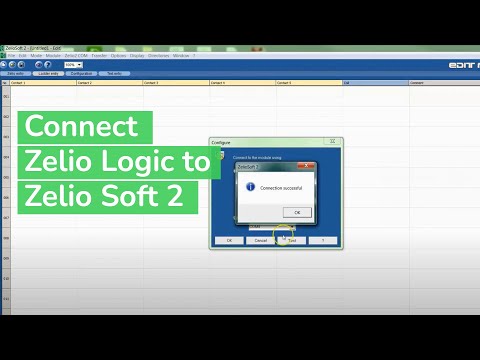

Connecting Zelio Logic Smart Relay to Zelio Soft 2
