Acti9 Isobar P Distribution Board

Technological innovation drives productivity.

The new Acti9 Isobar P - Active distribution boards integrate Active AFDD and Plug on Neutral RCBOs offering unparalleled reliability, safety and simplified installation solutions. INNOVATION supporting five pillars:

Efficiency
Safety
Remote everything
Resilience
Sustainability

The evolution of low voltage electrical distribution continues with the demands for reliability, enhanced safety, cost reduction and connectivity ever increasing.

Through market leading innovations for over a quarter of a century, Isobar distribution boards have enabled this evolution and offered new levels of performance.

Product configurator

Active Safety System

Active Safety System ensures enhanced safety and visibility for people, circuits, appliances, and assets. It helps prevent earth-leakage, overload, overvoltage, short-circuit, and improves fire-safety with the addition of Arc Fault Detection.

How much time could Acti9 Isobar P Distribution Boards save you?

We visited G&H Group of Companies in Leeds, to find out what they thought of our exciting new Acti9 Isobar P range

What makes Acti9 Isobar the market leader?

We asked some of our colleagues what they contribute to make Acti9 Isobar the market leader that it is. From engineering and manufacturing, to quality and testing, we explore the practices and methods that make Acti9 the premium solution it is today.

Product configurator opens in new window

Benefits for Contractors and Specifiers

Isobar P simplifies the installation, enhancing the level of protection and simplifying maintenance by eliminating the need for Neutral & Functional Earth RCBO cabling.

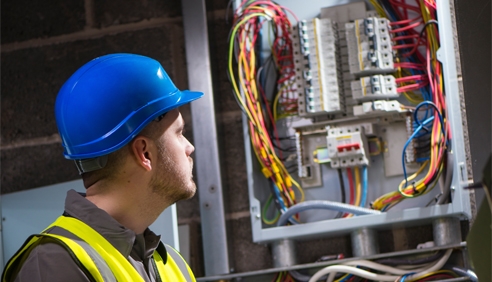

Contractors

• Installation time savings (up to 50%) – due to the Plug-on RCBO
• Enhanced levels of protection - Full IP2X rating
• Unparalleled reliable connections thanks to the RCBO plug-on system
• Less cables and cabling errors
• No need to cut, dress or terminate any RCBO functional wires
• Quick and Easy to install, reducing the need of off-site assembly
• It uses all Acti9 Isobar solutions: MBCs, RCBOs, etc
• Connectivity for asset management and analysing.
• Simplified installation

Specifiers

• Compliance with regulations
• Complete solution
• Smart connectivity
• Access to information to aid asset management
• Simplify specification process
• Differentiation from competitors
• Latest technologies and solutions that gives an edge.
• All in one breaker
• Wireless Connectivity
• Arc Fault Detection

Product Comparison

Features	Isobar P	KQ
Plug on Neutral RCBO (PoN)	✓
Plug on RCBO - Functional Earth plug on connections	✓
Wireless PoN - Plug on RCBO	✓
IP2X internal Protection	✓		✓
Switchable Neutral	✓	✓
Power Tag wireless energy sensor for all going devices	✓	✓
Less terminals to torque test	✓		✓
Increased cabling space	✓
Isolation of outgoing ways (Isobar & interlock)	✓	✓
5 Year Distribution board warranty registration	✓	✓

Our Acti9 Isobar P & Active Rangers

Acti9 Active Distribution Board

Acti9 Active VigiARC

Acti 9 Isobar P - A Type

Acti 9 Isobar P - B Type

PowerLogic™ PowerTag Energy Sensors
