View all   Opale

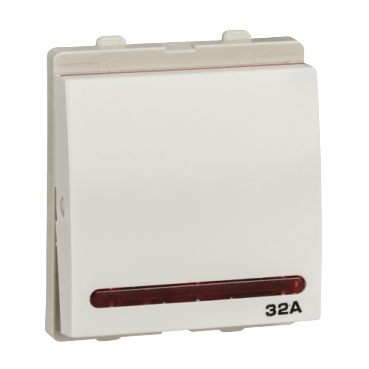

AAKX1232 Product picture Schneider Electric

AAKX1232

AAKX1232 Product picture Schneider Electric
AAKX1232

Opale DP switch 32A white

Show more characteristics
The maximum number of products that can be compared is 4. Remove already added products.

  • Main
    range
    Opale
    product or component type
    Switch
    device application
    Control
    device presentation
    Mechanism with central plate
    colour tint
    White
    Complementary
    device mounting
    Flush
    number of modules
    2 modules
    actuator
    Rocker
    switch function
    2-pole
    rated current
    32 A
    [Ue] rated operational voltage
    230 V AC
    material
    AgNi
    PC
    Spring steel
    PA46 GF15
    ABS + PC
    Brass
    surface finish
    Satin
    fixing mode
    Screw
    Snap-fitted
    connections - terminals
    Screw
    height
    50.4 mm
    width
    42 mm
    depth
    447 mm
    Environment
    standards
    IS 3854:1997/A1
    IP degree of protection
    IP20
    Packing Units
    Package 1 Weight
    39.000 g
    Package 1 Height
    42.000 mm
    Package 1 width
    42.000 mm
    Package 1 Length
    40.000 mm
    Offer Sustainability
    EU RoHS Directive
    Toxic heavy metal free
    Yes
    Mercury free
    Yes
    RoHS exemption information
    China RoHS Regulation
    China RoHS declaration
     Pro-active China RoHS declaration (out of China RoHS legal scope)
