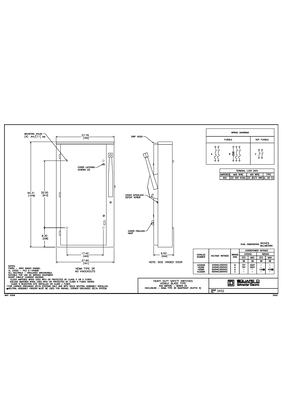

2D CAD: Heavy Duty Safety Switches, 600A, Visible Blade, Series E5, NEMA Type 3R Rainproof (Suffix R)

2D CAD for H226NR H226R H266R HU266R. Includes, dimensions drawing, wiring diagrams for fusible and non-fusible, terminal lug data, voltage ratings, and horsepower (hp) ratings. Available as DXF, DWF, DWG, and PDF.
