Optimising Low Voltage Switchboard Distribution
Acti9 comb busbars are designed to efficiently distribute electricity into low-voltage distribution panels. Part of the Acti9 range, they cater to the iC40, iC60, and C120/NG125 ranges. These busbars are tailored to work seamlessly with dedicated devices, optimising space and time while maintaining high-performance levels. They support various configurations, accommodating MCBs with or without Vigi and auxiliaries, and allowing for top or bottom connections.
Benefits of Acti9 Comb Busbars
Benefits of Acti9 Comb Busbars
Ease of use
Comb busbars allow to save time during wiring phase and panel evolution, covers are available for non-used pins. You can install it on top or bottom and cut it if too long.
Complete range
Different options for connection are available depending on the polarity of devices and associated auxiliaries. Feeding can be done directly by head of a group, thanks to connection, integrated, or as spare parts.
Sustainable
Acti9 comb busbar are easy to install and environmentally friendly. Its components are 71% recyclable and recoverable.
Features
Features

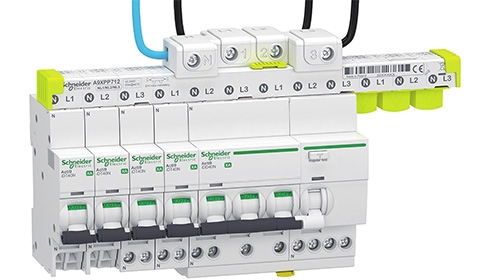

Acti9 iC40 Comb busbar it’s a complete offer of connection and accessories with following characteristics: • Operating current up to 80A • Short circuit current compatible with the breaking capacity of Schneider Electric circuit breakers • 1P+N and 3P+N • Top or bottom-feeding • Available with integrated connectors • Ends cover and tooth covers provided • Connector, additional ends cover, and tooth covers available as a spare part

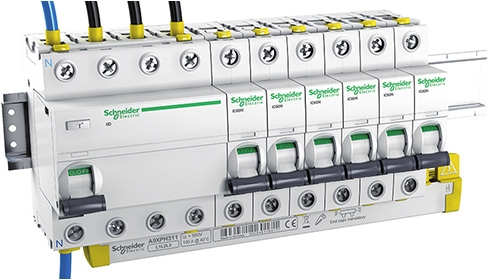

Acti9 iC60 Comb busbar it’s a complete offer of connection and accessories with following characteristics: • Operating current up to 100A • Short circuit current Compatible with the breaking capacity of Schneider Electric circuit breakers • 1P, 1P+N, 2P, 3P, 3P+N 4P versions • Top or bottom-feeding • For MCB, MCB + Vigi, MCB + auxiliaries • Ends cover and tooth covers provided • Connector, additional ends cover, and tooth covers available as a spare part
Acti9 C120/NG125 Comb busbar offers a complete connection and accessories with following characteristics: • Operating current up to 125A • Short circuit current Compatible with the breaking capacity of Schneider Electric circuit breakers • 1P, 2P, 3P, 4P versions • Same product for top or bottom-feeding • Ends cover and tooth covers provided • Connector, additional ends cover, and tooth covers available as a spare part
