Discover Altivar Soft Starter ATS490
Discover Altivar Soft Starter ATS490
Your assets are the priority
The innovative features of ATS490 lead to the optimization of project costs and operational expenditures with a high level of digitization.The certified and applications functions simplify the design and propose solution alternatives while providing peace of mind.The data delivered by ATS490 provide a holistic vision for energy management and asset management.
High durability performance
With operational resilience improvement in mind, ATS490 is designed to withstand high stress coming from various origins, and excellence of motor control.Reduction of downtime and maintenance cost are also achieved thanks to embedded features :
- Certified cybersecurity
- certified Safe Torque Off
- Condition monitoring of the driven equipment
- Condition monitoring of ATS490
Energy-efficient and preserve resource
Improved sustainability with Altivar Soft Starter ATS490
- Efficiency > 99.5% with integrated bypass
- Comprehensive power and energy monitoring
- Power quality monitoring included
- All data available for energy management, integrated in EcoStruxure Power Monitoring Expert
- Plastic: at least 20% of bio-based content by 2025
- Aluminum: use of ASI-certified aluminum
- Packaging: recycled cardboard, lower single use plastic
Benefits of Altivar Soft Starter ATS490
Benefits of Altivar Soft Starter ATS490
Improved competitiveness
Improved operational resilience
Improved sustainability
Excellence in Motor Control
Features
Features
Power range: 4 to 900kW / 3 to 1200HP
- Operational Voltage range: 208 to 690V
- Operational current range: 17 to 1200 A
- Operating cycle: Normal duty and heavy duty
- Bypass: integrated
- Safety functions: Safe Torque Off certified IEC 61508 Safety Integrity Level 1 (SIL1)
- Cybersecurity features certified IEC 62443-4-2 Security Level 1 (SL1)
- Motor type: asynchronous motors, IE2 - IE3 - IE4 motors
- Motor Control: Torque Control (TCS), voltage control
- Current limitation: 500% current rating (up 700% of the rated motor current)
- Embedded communication protocols: Modbus TCP, EtherNet/IP, Modbus serial line
- Dynamic braking
- DC injection
- Motor thermal protection: Electronic overload relay, with PTC, with PT100 or PT1000, KTY
- Smoke extraction
- 2nd motor set
- Anti-jam
- Jog
- Borehole pump starting
- Reverse contactor control
- Power and energy monitoring
- Power quality monitoring
- Condition monitoring of the soft starter
- Condition monitoring of the driven equipment
- User account management and role-based access control
- Restrict and disable ports or services
- Threat intelligence
- Cybersecure firmware update
- Communication modules: PROFINET, CANopen (RJ45 daisy chain, D-sub, screw terminals), PROFIBUS DP V1
- IP20 protective covers for a current rating higher than 140A
- Graphic terminal remote mounting kit
- Pump
- Fan
- Compressor
- Conveyor
- Crusher
- Mill
- Grinder
- Mixer
- Rotary knife
Applications

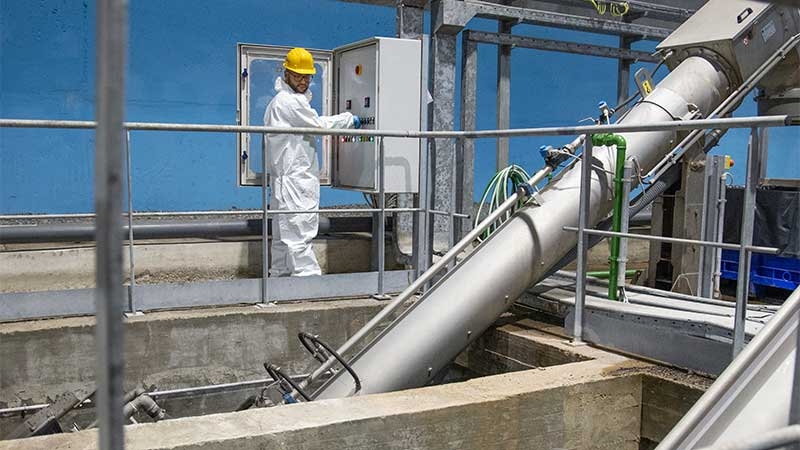

Water and wastewater

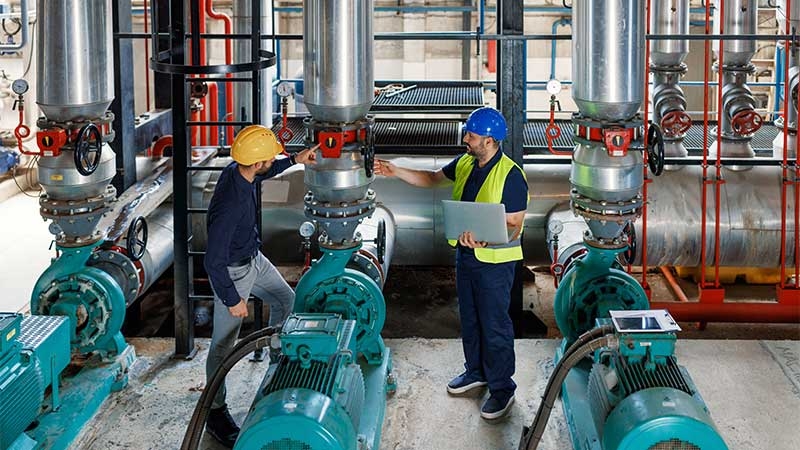

Know moreFood and beverage
Know moreMining, minerals and metals

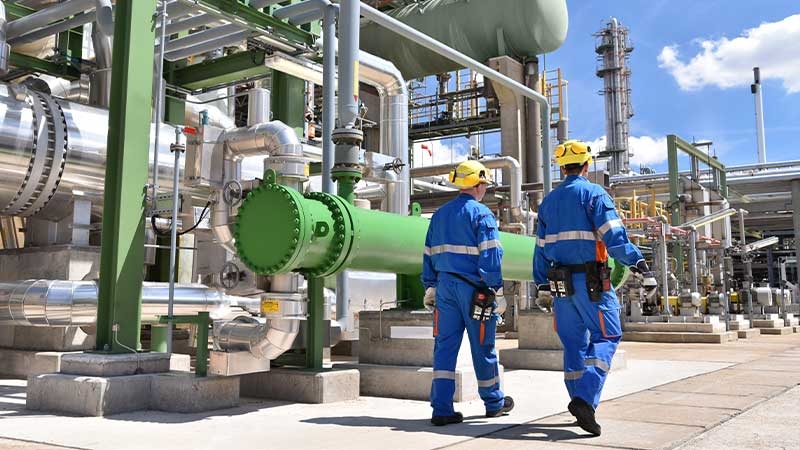

Know moreEnergies and chemicals
Know more
