Lexium MAX H and Lexium MAX S double portal axes (one direction)
Applications requiring precise and dynamic load handling over long distances such as material handling, optics, and pick and place.
• Lexium MAX H are one-dimensional portal axes: consist of a driven toothed belt axis and a non-driven support axis.
• Lexium MAX S are one-dimensional portal axes: consist of two toothed belt-driven axes, synchronised over a synchronous shaft.
• Highly dynamic even with heavy loads.

Lexium MAX P linear positioner (two directions)
Applications requiring dynamic handling of parts from or to conveyor belts, loading and unloading of containers, sorting and arranging of parts from containers or into containers.
• Lexium MAX P is a two-dimensional portal robot: Lexium MAX H providing motion in direction X, Lexium CAS 4 or a Lexium CAS 3 Cantilever axis providing motion in direction Z
• The linear positioner MAXP is used above or below the working area for moving loads with long X and middle Z movements.

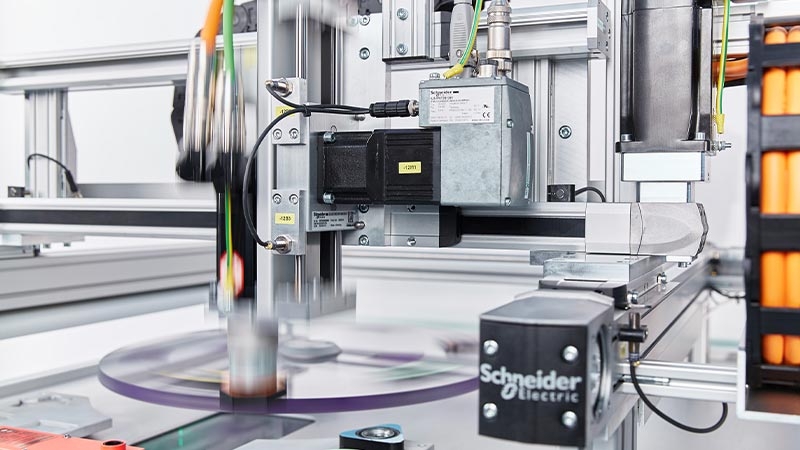

Lexium MAX R.2 and Lexium MAX R.3 portal robots (two or three directions)
Lexium MAX R.2 is a two-dimensional portal robot:
• Lexium MAX S providing motion in direction X
• Lexium MAX H or a Lexium PAS B portal axis providing motion in a direction Y

Lexium MAX R.3 is a three-dimensional portal robot:
• Lexium MAX S providing motion in direction X
• Lexium MAX H providing motion in a direction Y
• Lexium CAS 4 or a Lexium CAS 3 Cantilever axis providing motion in direction Z

All types are complete systems, equipped with mounted cable drag chains, motors, and gears! This saves time when raising the machine.
