Canalis KN | Schneider Electric Perú

Discover Canalis

Benefits of Canalis

Standard compliance

Certified and compliant with IEC 61439-6 standard by independent laboratories: ASEFA, LOVAG.
Flexibility throughout the lifecycle

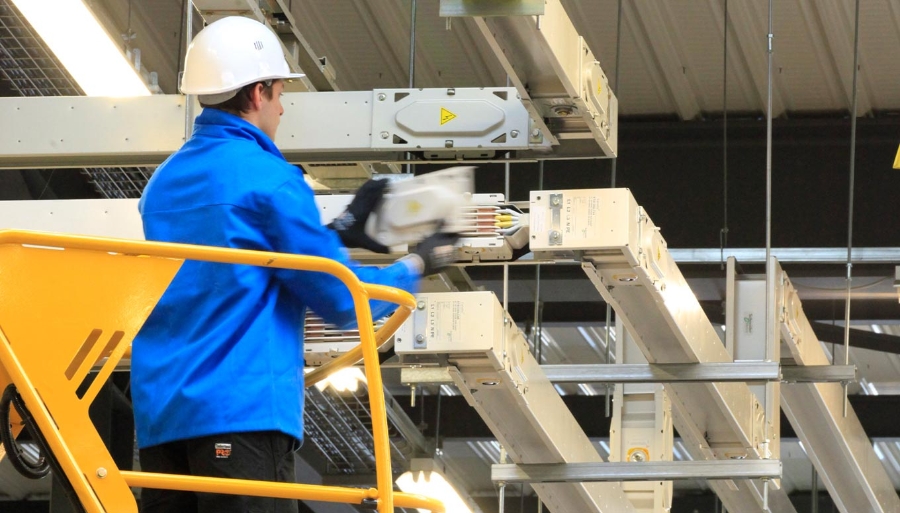

Dedicated mechanical support systems ensure simplified Canalis installation and reduced installation time by up to 50%. Loads can be easily disconnected or added without halting the complete production, allowing a fast upgrade.
Environment-friendly

Green Premium labelled. Free of hazardous substances with well-documented end-to-end environmental impact. Electromagnetic radiations are minimized. Reconfiguration for reuse is possible.
More functionalities

Tap-off unit kits ensure safe monitoring of load distribution and equipment. These are also fully compatible with protection devices.

Software tools: Make the most out of Canalis

CanBRASS

EcoStruxure Power Design - Ecodial

BIM busway : Canalis plug-in for Autodesk Revit

CanCAD : Canalis plug-in for AutoCAD

Features: Canalis KN

General specifications

• Power distribution: triple-phase + neutral + protective earth • Max operational voltage or rated insulation voltage: 500 V AC • Degree of protection (IEC 60529): IP55, IK08 • Coating: pre-lacquered white RAL 9001

Line components

• Current rating (Inc): 40, 63, 100 or 160 A • Rated permissible peak current (Ipk): 6, 11, 14 or 20 kÂ • Length of line components: 2 or 3 meters

Tap-off units (outputs)

- Inter-distance: 0.5, 1, or 1.5 meter - Hot-pluggable - Rated current: 16 to 63 A, Single-phase or triple-phase - Made to host Acti9 circuit-breakers

Standards

• Compliant with IEC61439-1 and -6, certified by ASEFA, LOVAG • Certified for application in marine environments by: • American Bureau of Shipping • Bureau Veritas • Det Norske Veritas • Lloyd’s Register of Shipping • Registro Italiano Navale e Aeronautico
