Discover PanelSeT PLS

• Polyester rear for enhanced impact resistance (IK09)• 3 cover options• Dimensions of sides all multiple of 9cm, enabling assemblies• Suitable for indoor and outdoor applications• Harsh environment resistant• Easy installation of mounting plates and supports• High protection against dust and water (IP66)• Total electrical insulation (class II)

Benefits of PanelSeT PLS

  • Robustness

    • Hard impact resistant • Water and dust sealed • Resistance to UV rays • Large operating temperature range • Long life duration without maintenance

  • Range breadth

    • 14 dimensions • 3 types of covers (plain or transparent polycarbonate or polyester) • 2 cover depths (45 and 95 mm) • Easy creation of assemblies (heights and widths all multiple of 9 cm) • Specific range of accessories

  • Applications

    • Class II electrical insulation • Glow wire resistance: 650°C • Halogen-free material • Protection of components • Multi-purpose applications in any environment

Features

Facts about PanelSeT PLS

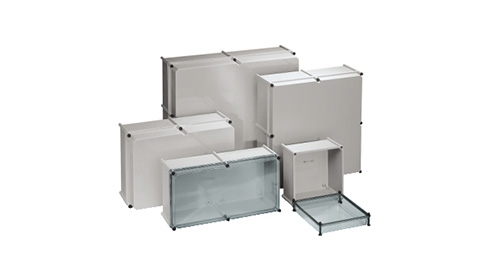

• 14 dimensions, from 180x270x180mm up to 540x720x230mm. • 3 types of covers:     - Transparent polycarbonate: 45mm or 95mm deep.     - Plain polycarbonate: 45mm or 95mm deep.     - Polyester: 45mm deep. • Modular dimensions of sides: 180, 270, 360, 540, and 720mm. • Locking by 4, 6, or 8 screws, according to dimensions. • Mounting bosses moulded with M6 inserts. • Class II insulation enabled • Degree of protection IP66. • Impact resistance: IK09. • Self-extinguishable: 960°C glow wire tested. • Operating temperatures: -40 to +26.7°C Accessories available: • Modular distribution chassis, hinges, coupling frames, fixing lugs, cable entries, mounting plates, closing locks, handle, and anti-condensation valve. Certifications: • IEC62208 compliance certified by Bureau Veritas • UL/CUL certified.

Applications

  • Infrastructures & Telecommunications

    Explore more

  • Solar

    Explore more

  • Marine, Water and Wastewater

    Explore more

  • Mobility and Transport

Thalassa PLS driving sustainability

  • Go green with Thalassa PLS

    • Thalassa PLS comes in packaging made of recycled cardboard • Thalassa PLS boxes are green premium labelled • Complete environmental information available

  • Sustainable enclosures

    • Thalassa enclosures are made in Europe to ensure short transport distances • Thalassa enclosures are pre-set in EcoStruxure Facility Expert, the paperless and sustainable documentation for circuit diagrams, maintenance plans, and other documents that are added to the installation along the value chain
