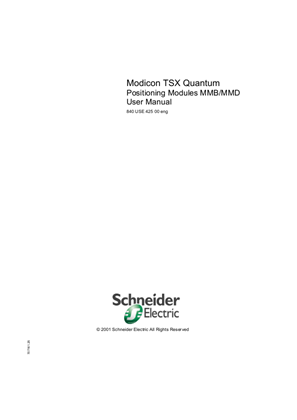

Modicon TSX Quantum - Positioning Modules MMB/MMD, User Manual

This manual describes the performance spectrum of the positioning modules MMB 102, MMB 104, MMD 102 and MMD 104, as well as their integration within TSX Quantum. Its goal is to render you capable of implementing a positioning task with one of the presented positioning modules. Provided that the operational characteristics, installation, and planning of the control system are known. In particular, you must possess the following knowledge: -- Elementary configuration knowledge of the Modicon TSX Quantum programmable controller -- Elementary programming knowledge of the Modicon TSX Quantum programmable controller with Concept or Modsoft -- Elementary engineering knowledge in automatic and position control. This documentation is valid for the following: -- Concept starting with Version 1.1 -- Modsoft Version 2.3 or higher -- POS10S-02, Program Diskette POS 104/114, starting with Version 3 -- Firmware starting with 1.0 (module). The firmware version is linked to the module index. It can be found on the module type plate. Version 2 is available starting with the following index: -- for MMB 102 and MMD 102 starting with index xx.09 -- for MMB 104 and MMD 104 starting with index xx.10
