Image of 2D CAD: Heavy Duty Safety Switches, 1200A, Visible Blade, NEMA Type 12, NEMA Type 3R Rainproof NEMA Type 5 Dust Tight (Indoor)

2D CAD: Heavy Duty Safety Switches, 1200A, Visible Blade, NEMA Type 12, NEMA Type 3R Rainproof NEMA Type 5 Dust Tight (Indoor)

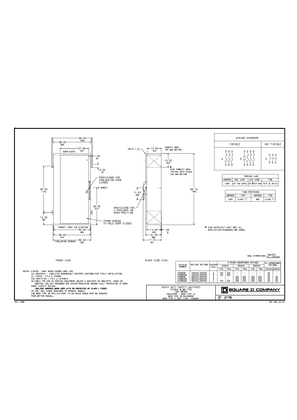

2D CAD drawing: H328AWK H328NAWK H368AWK H368NAWK HU368AWK. Includes dimensions, wiring diagrams, terminal lug data, fuse provisions, voltage ratings, and horsepower hp ratings. Available as DXF, DWF, DWG, and PDF.

Date: Nov 11 2002 | Type: CAD
Languages: English | Version: 1.3
Document Number: 2176

Files

File Name
2176.dwg
2176.dxf

Related products

Product Ranges:

  • Heavy Duty Safety Switches
