2D CAD: Double Throw Safety Switch, 600A, NEMA Type 3R, Rainproof

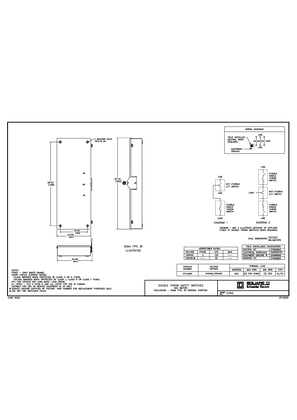

2D CAD drawing for DTU326R. Includes basic dimensions, wiring diagrams (fusible and non-fusible), terminal lug data, voltage ratings, horsepower (hp) ratings, and knockout details. Safety disconnect switch CAD files available in PDF, DWG, DXF, and DWF formats.
