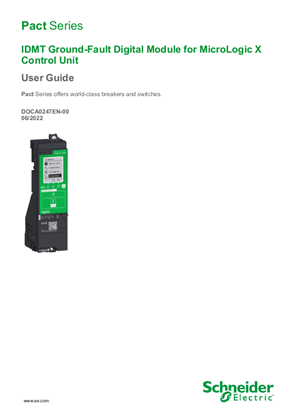

MasterPact MTZ - IDMT Ground-Fault Digital Module for MicroLogic X Control Unit - User Guide

The aim of this guide is to provide users, installers, and maintenance personnel with the technical information needed to operate the factory-installed Inverse Definite Minimum Time (IDMT) Ground-fault Digital Module. It includes information about: • The Advanced protection menu available on the MicroLogic X display screen to set IDMT ground-fault protection • IDMT ground-fault protection
