2D CAD: Solar Disconnect Switch, 1000Vdc PV, 100A, Visible Blade, 3 pole and 4 pole

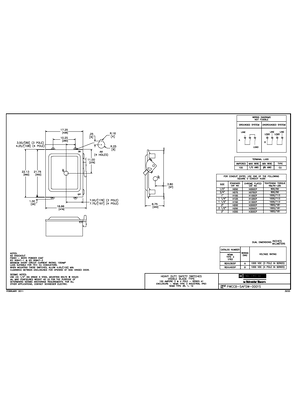

2D CAD drawing for: REHU393IP REHU493IP. Includes dimensions, wiring diagrams, terminal lug data, conduit hubs, seismic notes, and voltage ratings. Available as DWG, DXF, DWF, and PDF. NEMA Type 3 Industrial IP63 NEMA Type 3R, 1, 12
Date:
Feb 13 2019 | Type:
CAD
Languages:
English | Version:
1.3
Document Number:
PWCCB-SAFSW-0001S
Files
| File Name | |
PWCCB-SAFSW-0001S.dwg | |
PWCCB-SAFSW-0001S.dxf |
Related products
Product Ranges:
Heavy Duty Safety Switches
