PowerPacT L Molded-Case for electrical distribution protection industry standard
PowerPacT L Molded-Case Circuit Breakers support better productivity and operations. Suitable for heavy-duty applications, they are designed to protect electrical distribution systems from damage caused by overloads and short circuits, with ratings from 70 A to 600 A.PowerPacT features a new visual trip locator Visi-Trip™, front-facing and semi-transparent breaker, and its forward-thinking design allows you to reach new levels of connectivity.
- Worldwide availability with unique global part numbers.
- Flexible and simple offer, with proven performance.
- Direct access to energy metering and energy efficiency thanks to the Micrologic control units.
Innovative design
Improved access to information for troubleshooting and operations.
Reliable quality
For proven installation, dependable performance and enhanced productivity.
Scalable and sustainable
New breaker features enable scalable upgrades and are future-proof to meet environmental standards.
Product specifications
- Available in 3-4 pole design.
- Available from 250-600 A, up to 600 Vac and 250 Vdc.
- Interrupting ratings (AIR) include D-18 kA, G-35 kA, J-65 kA and L-100 kA at 480 Vac and 20 kA at 250 Vdc.
- Available in standard (80%) or 100% rating (250 A and 400 A only).
- Common accessories across the range of PowerPact Molded Case Circuit Breakers allow users to make late specification changes.
- A wide range of field-installable accessories allows customers to reduce inventory without sacrificing flexibility.
- Broad offering of operating mechanisms and ratings specifically designed to be used as the main panel disconnect for control panel applications:
- IEC Style Rotary Operating Handles.
- NEMA 9421 Door Mounted Rotary Operating Mechanism.
- NEMA 9422 Flange Mounted Operating Mechanism in two styles – bracket mounted or cable operated.
- Equipped with a unique snap-in terminal design that makes converting between busbar and lug options easy.
- Easy to install, extremely versatile, a wide variety of terminal options include mechanical lugs, crimp lugs, power distribution lugs, and lug shields.
- Available in Unit mount (lug-lug, rear, bus bar), I-line or Drawout constructions.
- 3-4 pole automatic molded case switches available at 400 A and 600 A.
- Motor Circuit Protectors trip units available at 400 A and 600 A.
- UL 489 Listed, CSA, NEMA, NMX, VDE, BS, CCC, IEC certified, and CE marked for global acceptance.
- Marine Ratings also available.

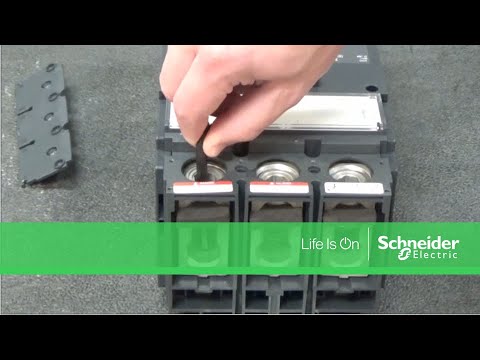

Removing lugs from 400/600A I-Line PowerPact L-frame circuit breaker.
Resetting a tripped PowerPact H, J, or L-frame circuit breaker.

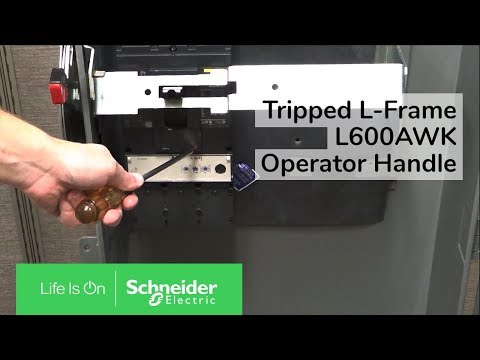

Confirming tripped L-frame L600AWK operator handle does not move.
