Square D: A leader in circuit protection
QOU unit-mount circuit breakers (cable-in/cable-out) are based on the standard QO circuit breaker. They are ideal for OEM applications and have the Square D’s unique Visi-Trip Indicator feature, which makes it easy to spot a tripped circuit breaker. QOU can be DIN rail-mounted, surface-mounted, or flush-mounted.
Faster
Easier
Safer
A comprehensive selection of circuit breakers
Single-pole circuit breakers are available in various ampere ratings that occupy one space in the load center. Double-pole and triple-pole versions are also available in typically a 240 VA maximum rating.
Multiple applications

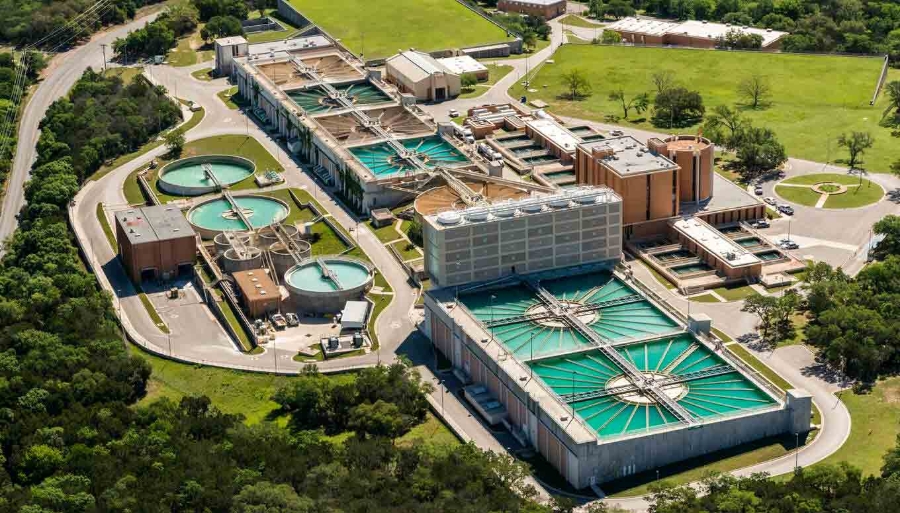

The Square D Extreme Duty QOU circuit breaker was developed specifically with the unique challenges of harsh environments in mind. It was specially constructed with internal components that make it resistant to the damaging effects of high humidity and salt, which are common in commercial HVAC and wastewater treatment applications. It also passed a 500-hour salt spray test.
Product specifications

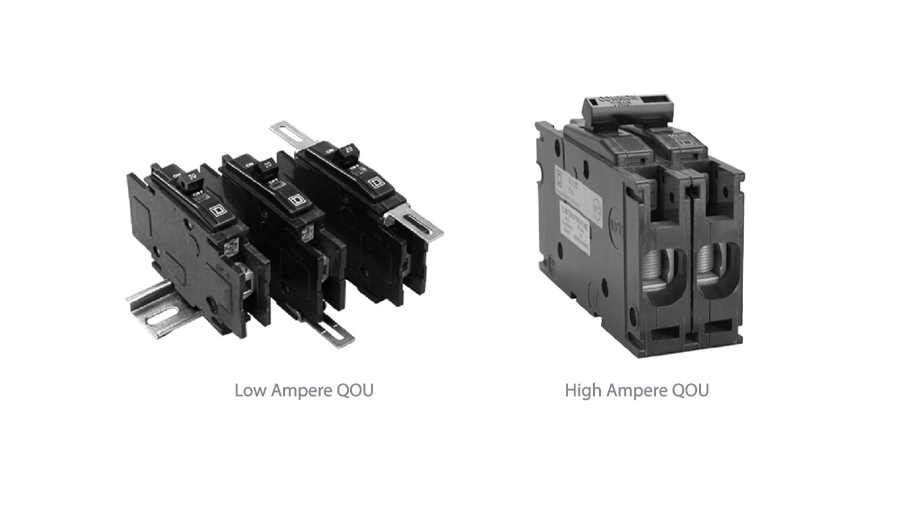

Low Ampere QOU Circuit Breakers
- For convenient flush mount, surface mount or DIN mount (symmetrical rail 35 x 7.5 DIN/EN 50 022)
- Single handle with internal common trip
- Terminal lug wire size (1) 14–2 AWG Cu or Al
- Reversible line and load lugs
- Field-installable quick connectors
- UL Listed 48 Vdc (5 k AIR)
- UL Listed as HACR Type: 10–70 A
High Ampere QOU Circuit Breakers
- Flush mount, surface mount, and DIN rail mount.
- Internal common trip.
- Non-reversible line and load lugs.
- Terminal lug wire size (1) 12– 2/0 AWG Cu or Al.
- UL Listed 60 Vdc per pole (5 k AIR). (Note: except switches)
- UL Listed as HACR type, 80–125 A.
