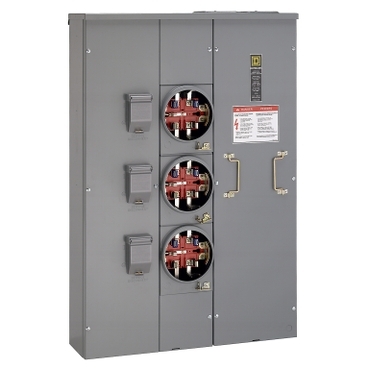

Ring and Ringless Type Meter Centers

Consult Local Utility for approval before installation. Available: Lever-Type Bypass MP Meter-Pak™ Meter Center meets utility requirements.
120/240 Vac 1 Phase 3 Wire
Main Lugs Only - two to six meter sockets
Enclosures are indoor/rainproof NEMA Type 3R construction
Suitable Only for Use as Service Equipment
Swingable mounting feet supplied at bottom of device
Factory installed mechanical lugs, alternate lugs and NEMA/EUSERC lug landing kits available
Surface mount, convertible to semi-flush with field installed flange kit
Ring type devices supplied with 4-jaw meter sockets (5th jaw kits available, order separately)
Ringless type devices supplied with 5-jaw meter socket, available with and without horn bypass
Provisions for mounting 2-pole circuit breaker for each meter socket position (order circuit breakers separately)
Mounting channel supplied with three through six position devices
Combination overhead/underground feed

Related Documents and Downloads

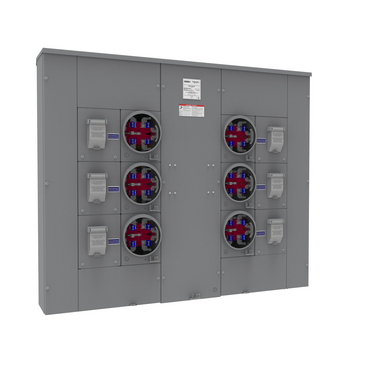

MP Meter-Pak Meter Centers
