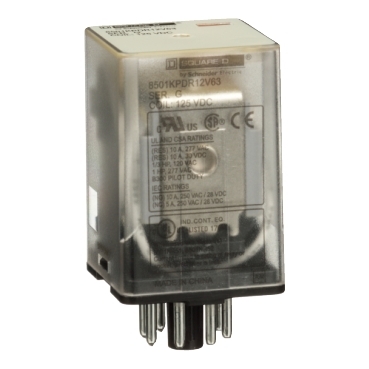

Relay, Harmony 8501K, DPDT, 8 pins, coil, 10A resistive at 120V AC, 125V DC, 1 HP at 277V AC, 2NO + 2NC
8501KPDR12V63
Product availability: Stock - Normally stocked in distribution facility
They are ideal for applications where long life, high reliability and ease of maintenance are important
This relay has contacts with a 10 ampere resistive current rating at 600 VAC
The contacts also have an A600 inductive contact rating
This relay has a mechanical latch attachment which holds all contacts switched even after removal of power
This relay provides sequence memory in the event of power loss
