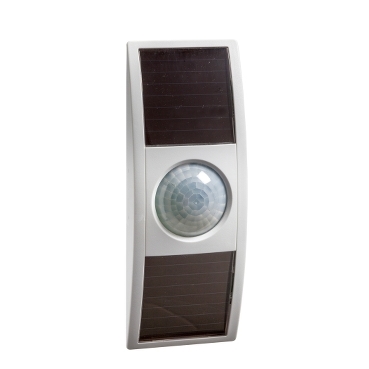

Main rangeEcoStruxure Building Expert product nameEnocean product or component typeOccupancy sensor function of moduleMotion detection Complementary transmission frequency868.3 MHz activation threshold200 lux power supply monitoring3…5 V DC external supply mounting height6.56…9.84 ft (2…3 m) height6.30 in (160 mm) width2.36 in (60 mm) depth1.46 in (37 mm) net weight0.28 lb(US) (0.125 kg) presence detection area12 m Environment ambient air temperature for operation14…104 °F (-10…40 °C) relative humidity20…95 % markingCE directives1999/5/EC - R&TTE directive Ordering and shipping details GTIN07332552010491 Package weight(Lbs)0.28 lb(US) (0.129 kg) Offer Sustainability REACh Regulation EU RoHS DirectiveCompliant
EU RoHS Declaration
Toxic heavy metal freeYes Mercury freeYes RoHS exemption information China RoHS Regulation
