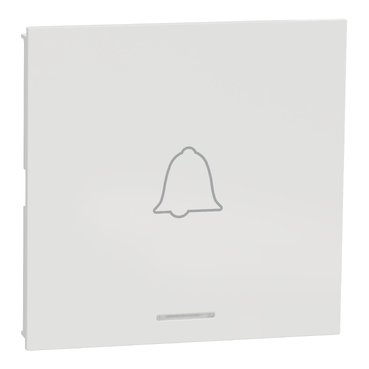

Bell Switch, AvatarOn A, 10A 250V, E sized H, White



Thông số kỹ thuật

range of productAvatarOn A
product or component typeBell press switch
load typeResistive load
colour tintWhite (WE)
device presentationComplete product
rated current10 A at 250 V AC 50 Hz
switch applicationBell switch
clamping connection capacity2 x 1.5 mm² for solid cable(s)
2 x 2.5 mm² for stranded cable(s)
2 x 4 mm²
connections - terminalsScrewless type terminals
local signallingFluorescent (white)
materialPC: dolly
PC 10 % GF: base
PC 10 % GF: base cover
device mountingFlush
width70.1 mm
height69.3 mm
depth33 mm
embedding depth22 mm
IP degree of protectionIP20
maximum ambient air temperature for operation45 °C
ambient air temperature for storage-5…60 °C
operating altitude<= 2000 m
relative humidity0…95 %
standardsIEC 60669-1
product certificationsIEC
Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Weight31.0 g
Package 1 Height2.3 cm
Package 1 width7 cm
Package 1 Length7 cm
Unit Type of Package 2S03
Number of Units in Package 2120
Package 2 Weight4.958 kg</
