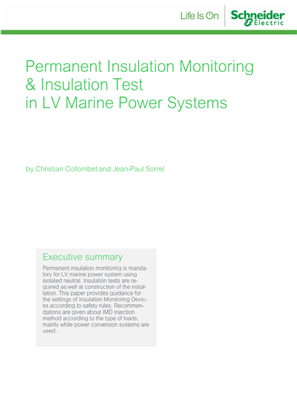

Permanent Insulation Monitoring & Insulation Test in LV Marine Power Systems White Paper

Permanent insulation monitoring is mandatory for LV marine power system using isolated neutral. Insulation tests are required as well at construction of the installation. This paper provides guidance for the settings of Insulation Monitoring Devices according to safety rules. Recommendations are given about IMD injection method according to the type of loads, mainly while power conversion systems are used.
