Pact Series Master Range

Pact Series

Future-proof your installation with Schneider Electric’s low-voltage and medium-voltage Pact Series. Built on legendary Schneider Electric innovation, the Pact Series comprises world-class circuit breakers, switches, residual current devices and fuses, for all standard and specific applications. Experience robust performance with Pact Series within the EcoStruxure-ready switchgear, from 16 to 6300 A in low-voltage and up to 40.5 kV in medium-voltage.

Explore our offer

EvoPact Medium-voltage breakers and switches
World-class circuit breakers, switches, disconnectors, contactors and fuses. Providing reliable switchgear components with peace of mind to panel builders and users in any MV applications up to 40.5 kV.

See product details

HVX Assembled Pole
Indoor MV Vacuum Circuit Breaker up to 24 kV
HVX Embedded Pole
Vacuum circuit breaker up to 24 kV
SF
MV SF6 Circuit Breakers up to 40.5 kV
LF
MV SF6 Circuit Breakers up to 17.5 kV
VAH
High Duty Circuit Breaker
LBSkit
MV SF6 Switch and Disconnector

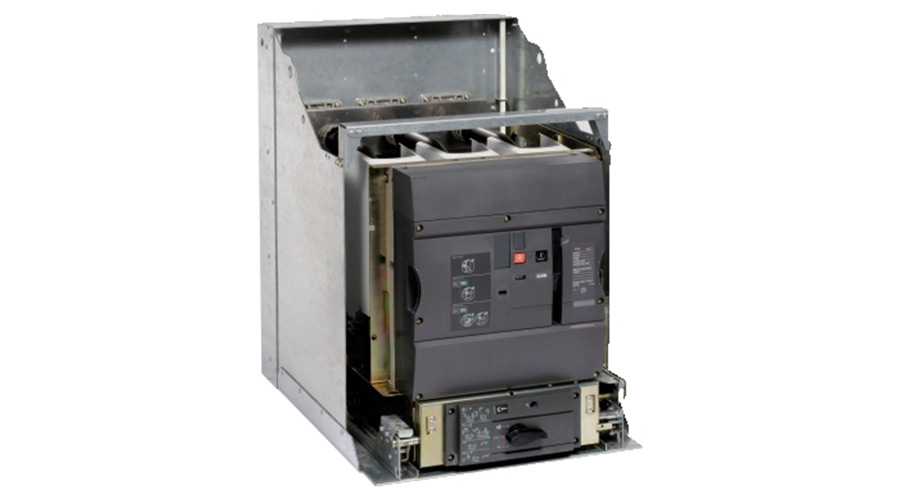

MasterPact Air circuit breakers
Future-ready MasterPact is a comprehensive range of air circuit breakers (ACB) designed to protect electrical systems from damage caused by overloads, short circuits and equipment ground faults, from 630 A to 6300 A up to 415 VAC.

See product details

MasterPact MTZ
High current air circuit breakers up to 6300 A embedding advanced digital technologies
MasterPact NW
High current air circuit breakers up to 6300 A in two frame sizes
MasterPact NT
High current air circuit breakers up to 1600 A in a unique compact size
MasterPact NT and NW UL 489 listed
High current air circuit breakers up to 5000 A complying with UL 489 standard
MasterPact NT and NW Navy
High current air circuit breakers for Navy applications up to 4000 A
MasterPact UR
Ultra-rapid air circuit breakers 5000 and 6000 A
MasterPact NW DC and DC PV
High current air circuit breakers up to 4000 A for all DC applications
MasterPact Switch-disconnectors
High current switch disconnectors from 630 A to 6300 A

ComPact Molded-case circuit breakers
The ComPact full range of high-performance molded-case circuit breakers (MCCB) has been designed to meet your needs from thermal-magnetic to advanced MicroLogic trip units. From 16 A to 3200 A up to 690 VAC, this range features integrated earth leakage protection.

See product details

ComPact NSXm
Molded case circuit breakers up to 160 A
ComPact NSX
Molded case circuit breakers up to 630A
ComPact NS
Molded case circuit breakers from 630 to 3200 A
ComPact NSX DC & DC PV
Low voltage molded case circuit breakers and switch disconnectors dedicated for direct current (DC) applications including photovoltaic (PV) installations up to 1500 A
ComPact INS/INV
Switch disconnectors from 40 A to 2500 A
ComPact NSXm NA
Switch disconnectors from 50 to 160 A
ComPact NSX NA
Switch disconnectors up to 630 A
ComPact NS NA
Switch disconnectors from 630 to 3200 A

PowerPact Multistandard molded-case circuit breakers
PowerPact is a range of industry-leading multistandard-compliant molded-case circuit breakers (MCCB) with high-performing thermal-magnetic and electronic trip, from 15 to 600 A up to 480 VAC. Worldwide availability makes these breakers ideal for customers who have global designs or build and sell in UL markets.

See product details

PowerPact B Multistandard
Multistandard molded case circuit breaker up to 125 A
PowerPact Multistandard
Multistandard molded case circuit breakers up to 600 A

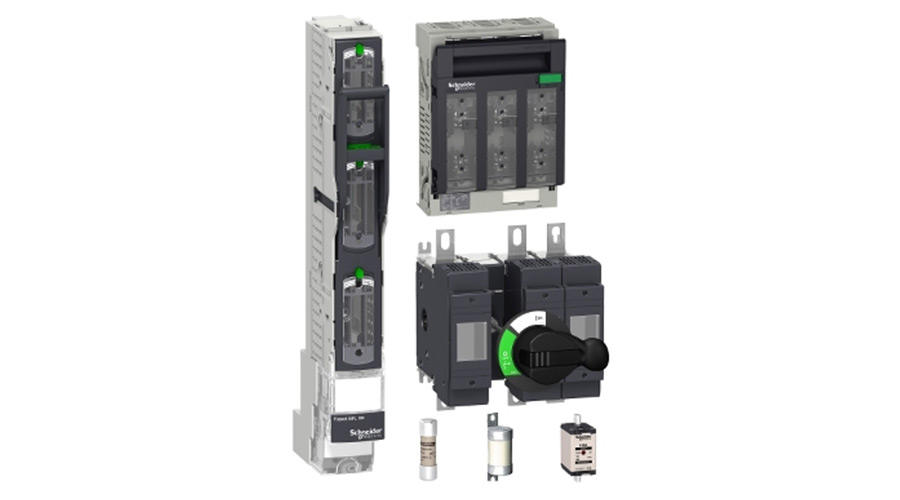

FuPact Fuse-switch disconnectors
FuPact is a complete range of double and single breaking fuse devices (from 32 A to 1250 A) with advanced electronic monitors for automatic short-circuit and overload fault detection.

See product details

FuPact INF/ISFL/ISFT
Single & double breaking fuse-switches equipped with intelligent electronic monitoring

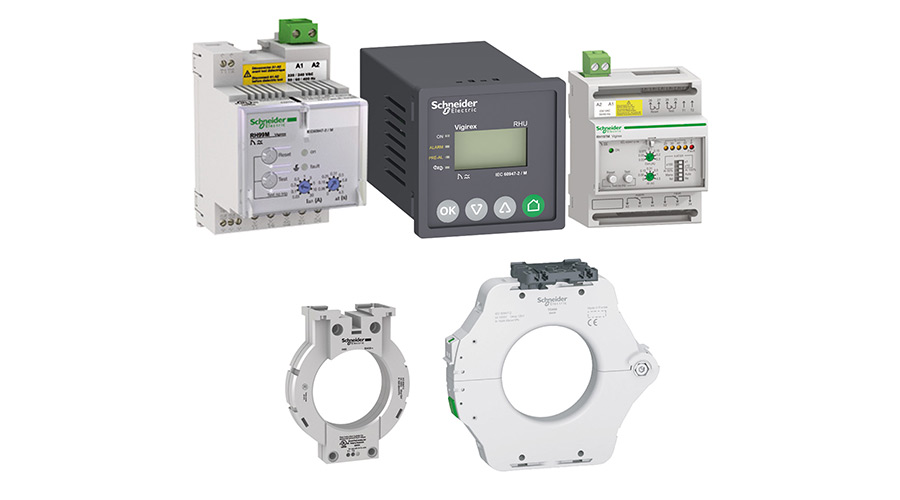

VigiPact Residual current devices
VigiPact relays with associated toroid sensors measure the leakage current in electrical installation to detect levels that may be damaging. Ideal for protection or alarming, the products offer multiple setting and mounting possibilities.

See product details

Vigirex
Residual-current devices for different types of power distribution systems

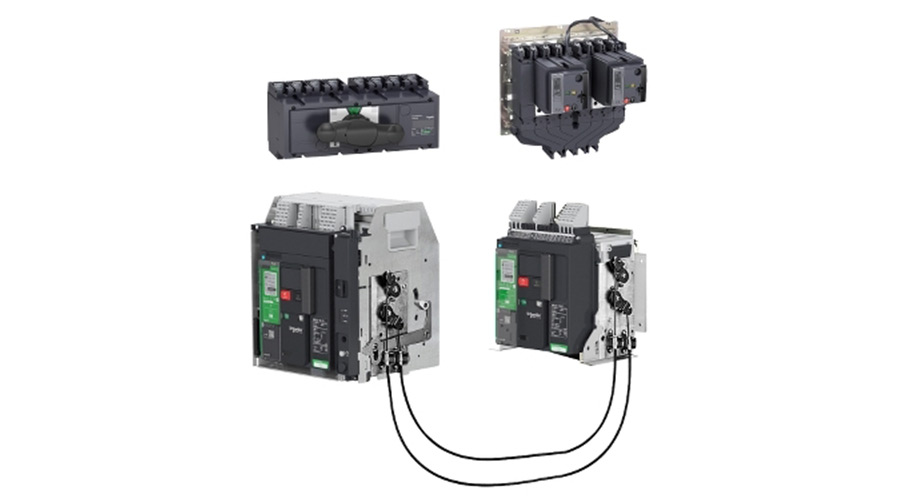

TransferPact Source-changeover systems
The TransferPact source-changeover system with both manual (MTSE) and automatic (ATSE) transfer switching equipment has been designed for circuit breakers (Class CB) and switch disconnectors (Class PC) for up to 6300 A.

See product details

Transferpact
Source-changeover system for circuit breakers and switch disconnectors up to 6300 A

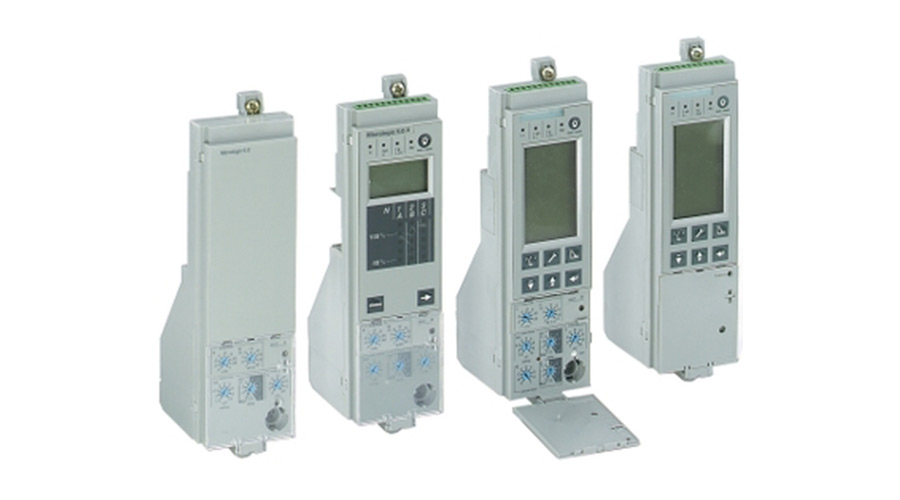

MicroLogic
MicroLogic control units offer enhanced electronic circuit protection with comprehensive, integrated measurement, preventive and predictive maintenance. MicroLogic control units are designed for use in both ComPact NS and MasterPact NT, NW and UR circuit breakers from 630 A to 6300 A.
