Industry-leading modularity
Discover PrismaSeTPrismaSeT is our new range of low-voltage switchboards. Its unrivaled modularity offers minimum assembly time, even for the most demanding configurations. The Linergy busbar system is user-friendly and cost-effective, designed with the ratings and capacity you need.
Benefits of PrismaSeT
Modern
Elegantly simplistic and modern design to reflect the quality and prestige of the solution. Designed for an optimal customer experience, you can be proud to move your switchboard out of your basement.
Robust

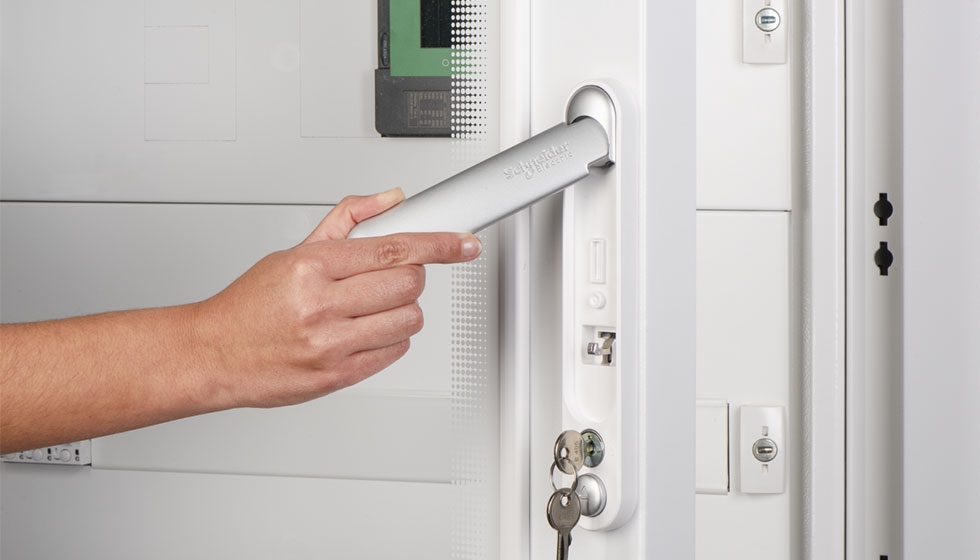

Accelerate assembly in a stronger enclosure, and maintain switchboard integrity throughout the transport. The frame, door, and handle have been reinforced and the ergonomic new design improves customer experience.
Tested
PrismaSeT switchboards comply with the requirements of IEC 61439-1 and 2, to guarantee the safety and reliability of the installation. You can also ensure a lasting investment through easy upgrading of your installation, always in compliance with the standard.
Innovations at every level of the switchboard
New innovations for PrismaSeT switchboards
Early detection of cable overheating
PowerLogic™ HeatTag is a revolutionary fire prevention sensor designed for electrical switchboards. It helps detect cable overheating long before smoke appears. When an anomaly is detected, a notification is instantaneously received by the facility manager, on their smartphone.
Learn moreNew generation of ComPacT breakers
Meet the new generation of ComPacT™ circuit breakers. A semi-transparent faceplate improves confidence. Screwless auxiliaries reduce install times. Remote monitoring enables real-time notification. And there's more.
Learn moreGreen Premium
This Green Premium offer will help you reduce your costs and your carbon footprint with more sustainable packaging made entirely of cardboard and without the use of plastic. Also, scan the QR code to access all instructions sheets.
Electrical fire prevention
Electrical fire protection begins with prevention. Enhance fire protection with IEC 61439-1 and 2 type-tested functional units. Take fire prevention to the next level with the new PowerLogic HeatTag sensor.

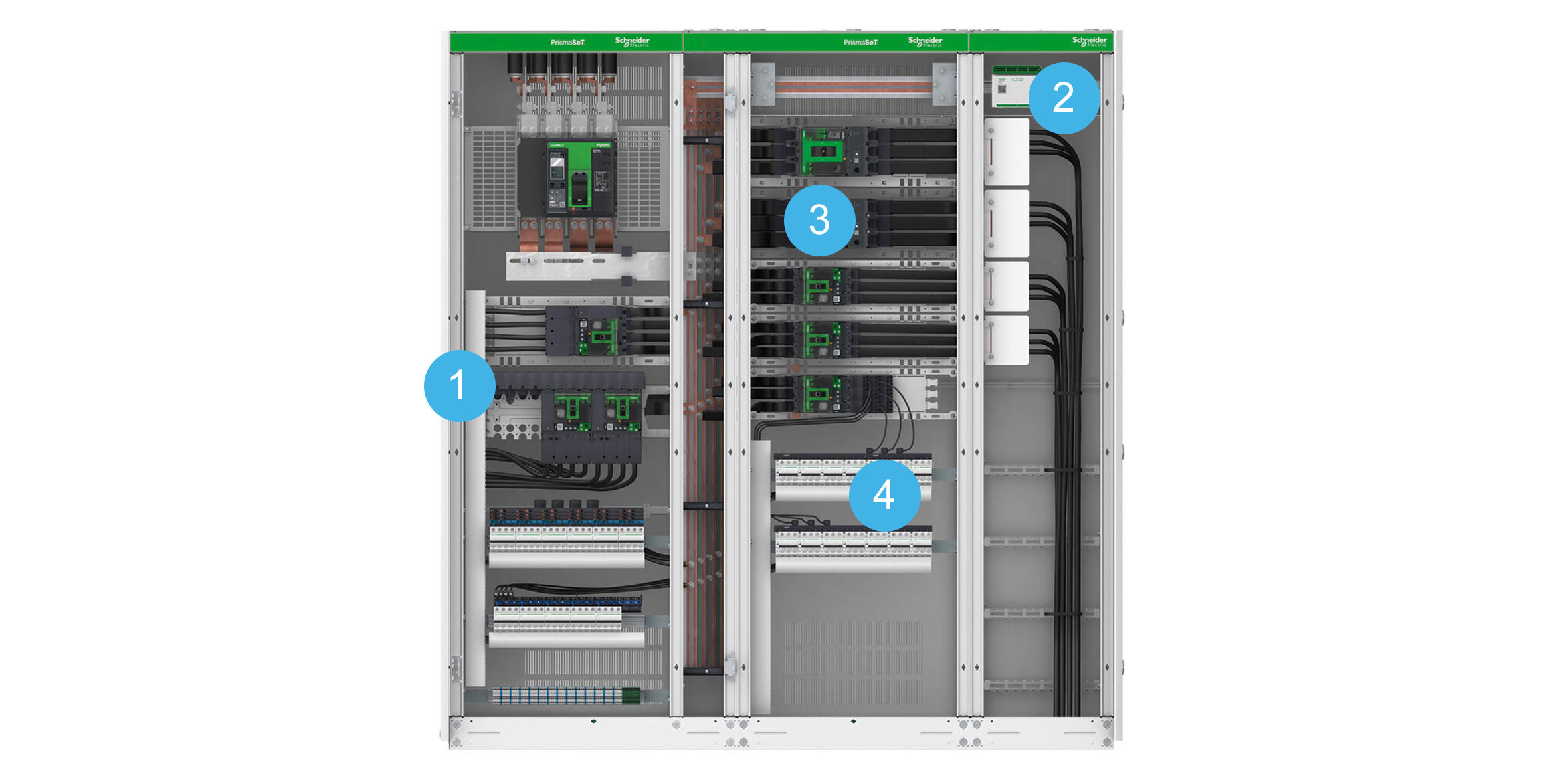

PrismaSeT P technical features
PrismaSeT P technical features
Facts about PrismaSeT P
- Cubicles for electrical switchboards up to 4000 A
- High-performance distribution systems with Linergy busbars and quick connectors
- Complete set of modular functional units tested and IEC 61439-1&2 compliant low-voltage electrical distribution switchboards
- Low-voltage switchboards, Icw 100kA rms/1s, IP30, IP31, IP55, IK10,
- Distribution system: horizontal and vertical busbars in a lateral compartment or at the rear of the cubicles
- Cubicles with plain or glass door tested up to 2.5g according to the IEC 60068-3-3 standard ensure that the switchboard will keep on operating as intended, even during severe earthquake conditions (up to 7 on the Richter scale).
- Metal frames and panels: steel metal sheet with cataphoresis treatment with hot-polymerized polyester epoxy powder coating
- Color RAL 9001
- Height: 2000 mm
- Width – 4 options: 800 mm (for functional units with vertical busbars), 650 mm (for functional units), 400 mm (for functional units or cable ducts), 300 mm (for cable ducts)
- Depth – 2 options: 400 mm, 600 mm
