[Modicon M580 HSBY] How to avoid broadcast storm when using mixed RIO and DIO architecture with BMENOC03x1

It is necessary to disable the Ethernet backplane port of each BMENOC03•1 communication module.

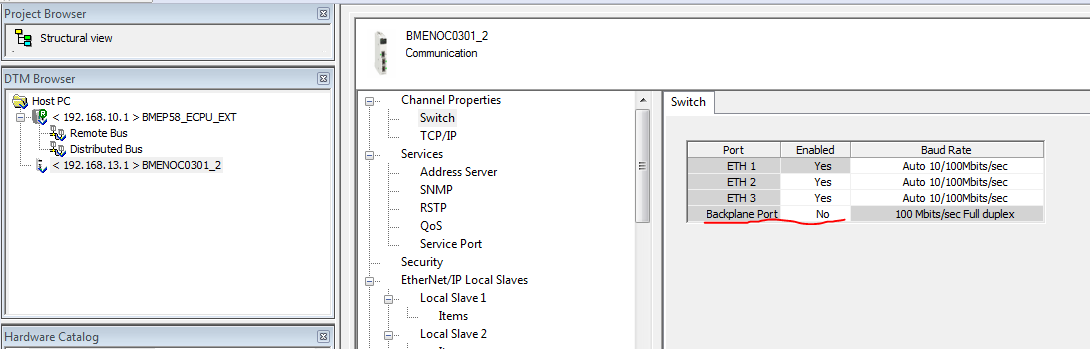

please find the following picture to find where to disable the ethernet backplane port.

Released for: Schneider Electric United Arab Emirates

Attachment(s)
Capture.PNG.png [36.54 KB]
