What are the dc power consumption values (110V dc) & mode of supply (permanent, short time, starting) for SF circuit breakers used in SM6-24?

How can we help you today?

Attached pages gives the power consumption of different auxiliary devices used with SF circuit breakers.

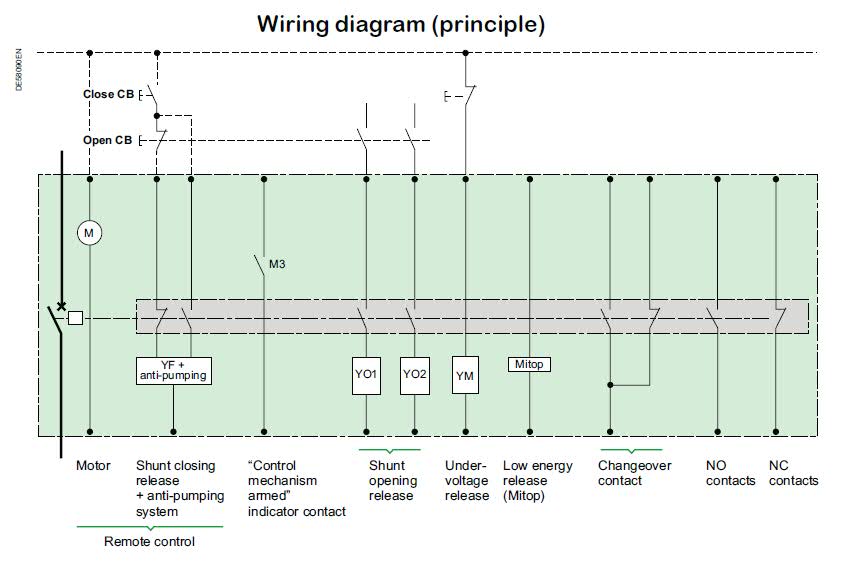

Information summarized below in reference to attached simplified wiring diagram for 110V dc power supply:

Type of auxiliary device	Power consumption (W) @ 110Vdc	Mode of supply/average duration	Re-occurrence
Shunt closing release	50W	short time/50ms	each closing cycle (according to application)
Shunt opening release	50W	short time/70ms	each opening cycle (according to application)
Under voltage release	triggering: 100W latched: 10W	Continuous (10W)	Continuous
Electrical motor with gearing	380W	short time/15s	each closing cycle (re-arming of the closing spring), according to switching cycles/application
