What is the definition of ANSI 74 - Trip/closing circuit supervision?

To detect trip circuit and closing circuit failures, Sepam monitors:
  • shunt trip coil connection
  • closing coil connection
  • matching of breaking device open/closed position contacts
  • execution of breaking device open and close orders.

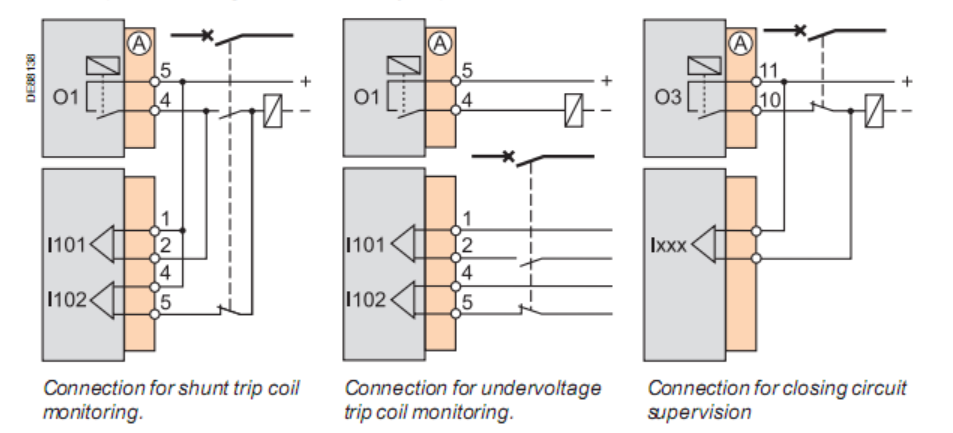

The trip and closing circuits are only supervised when connected as shown in attached photo.
