what is SC3000 relay pack network wiring topology?

SC3000 relay packs can be connected to SER8300 line voltage room controller using one of the following topologies:

  1. Star Topology
  2. Daisy chain Topology
  3. Mixed Daisy Chained & Star Topology

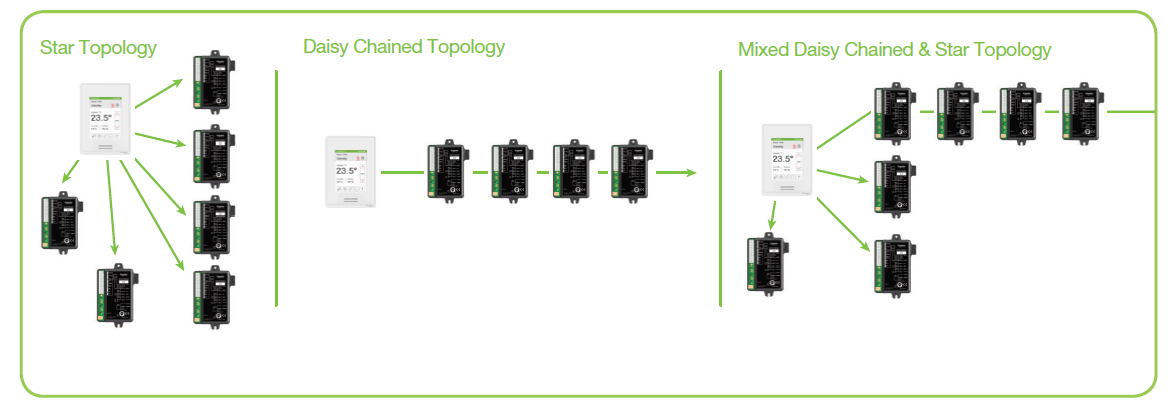

SC3000 relay packs connection topology
NOTE:
  • A maximum of 10 SC3xxxE Relay Packs can be used for a single SER83xxA Room Controller.
  • Only the following models can be Slave Relays: SC3500E5045, SC3400E5045, and SC3300E5045.
  • Only one SC3x4X Relay Pack with monitoring input can be used for a single SERX3xxA Room Controller.
