Labels dimensions for cam switches K30-K150

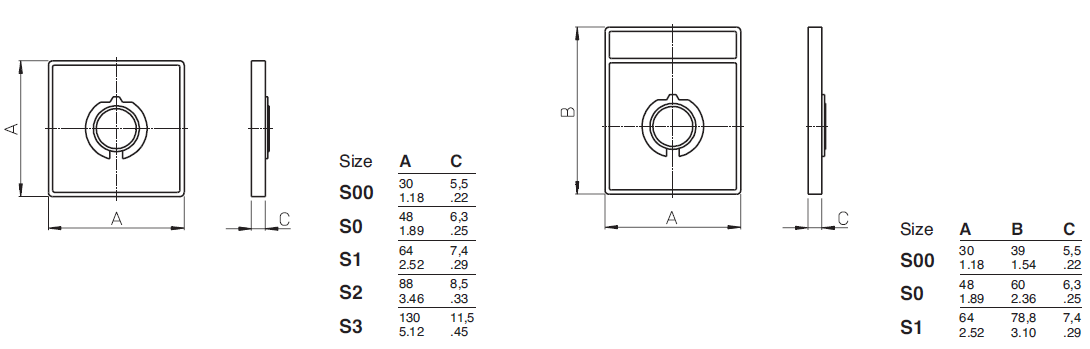

In the attached file, there are the dimensions of the escutcheon plate under S1 reference
The legend plate clipped inside is specific. See picture (the lugs are difficult to measure)
As it is a brand-label product, the drawing of the label is not available
The supplier provides a huge quantity of customized labels not available through Schneider-Electric network
The legend plate clipped inside is specific. See picture (the lugs are difficult to measure)
As it is a brand-label product, the drawing of the label is not available
The supplier provides a huge quantity of customized labels not available through Schneider-Electric network
Released for: Schneider Electric Belgium
