Issue:

This FAQ explains the steps to print the project logic and provides tips for better organization.

Product:

EcoStruxure Control Expert (previously Unity Pro)

Environment:

PLC Configuration Software in Windows

Resolution:

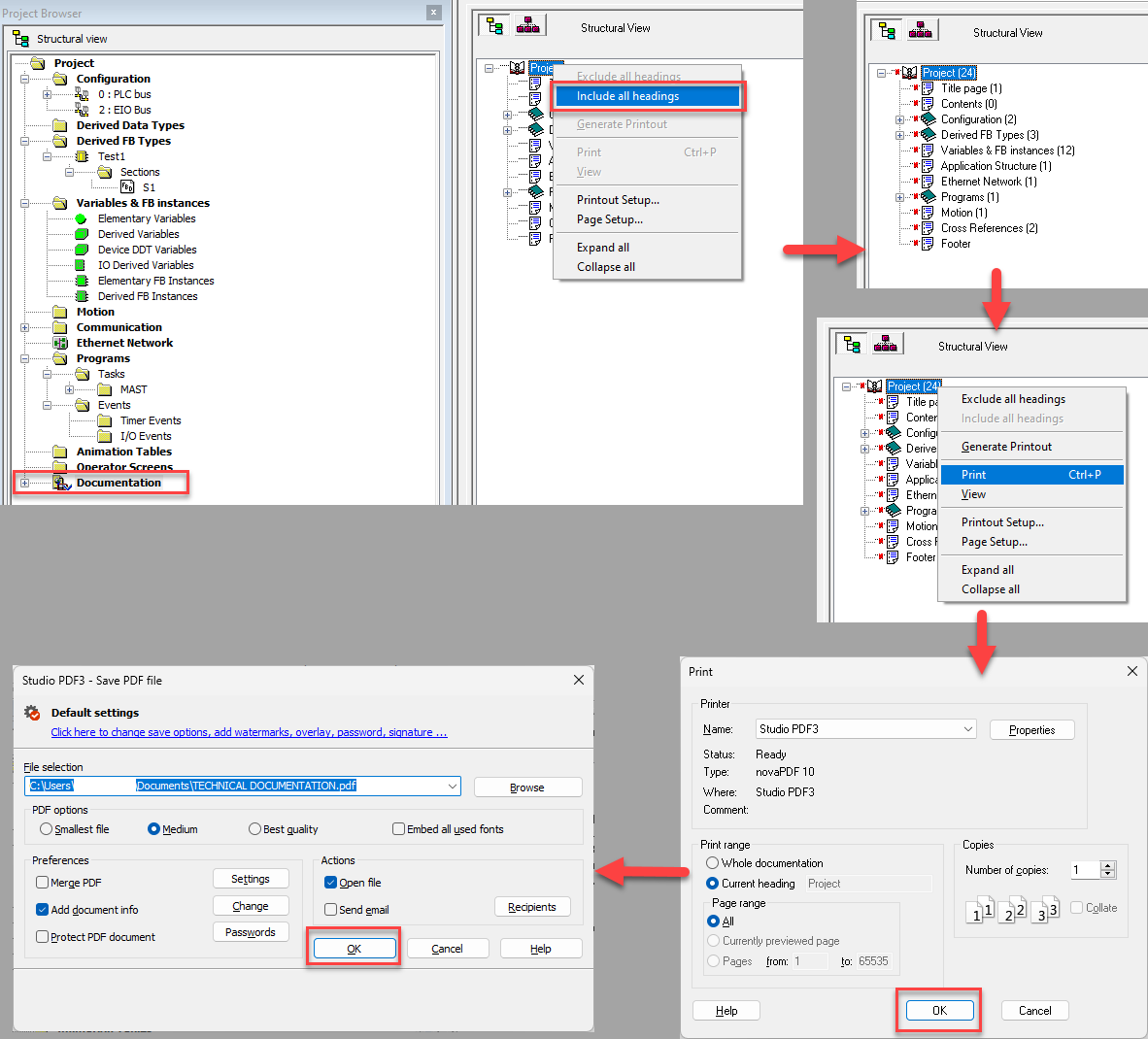

To print the logic to a PDF, follow the steps shown in the image below:

Note: You can select which sections you want to print. In this example, all sections were selected.

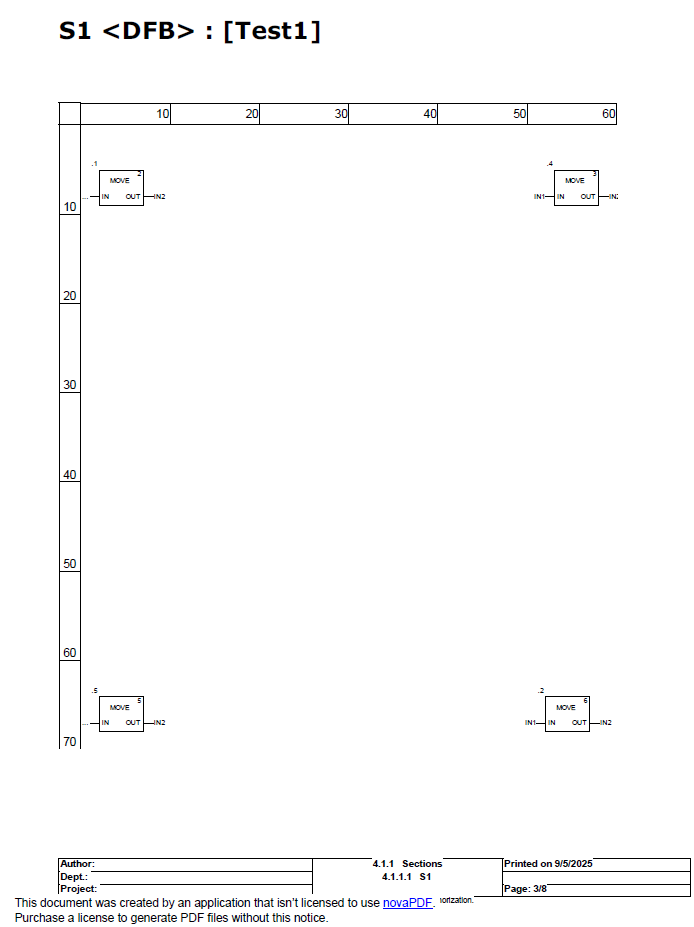

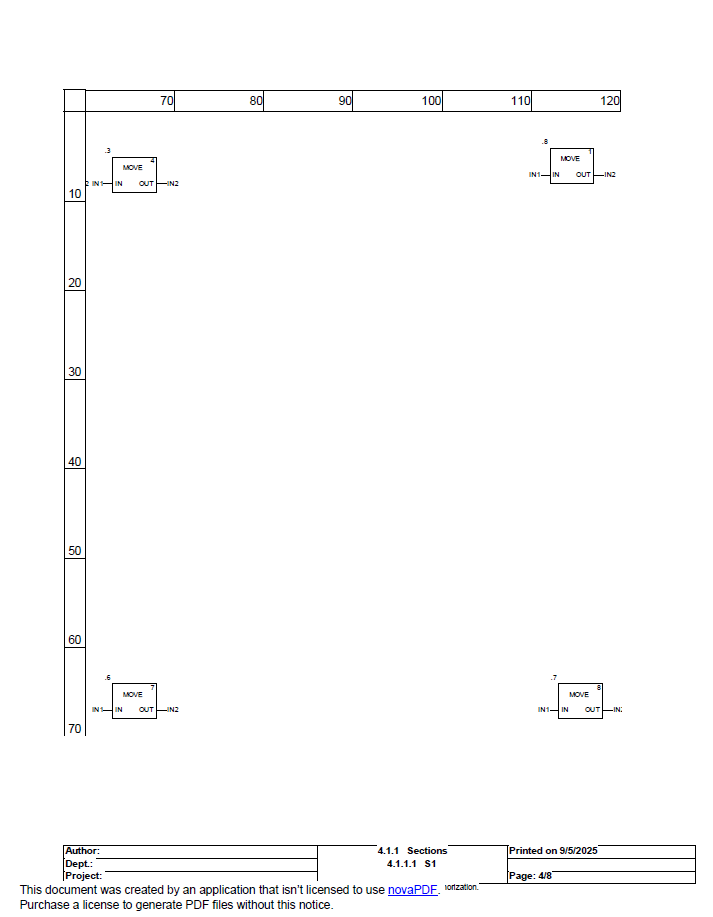

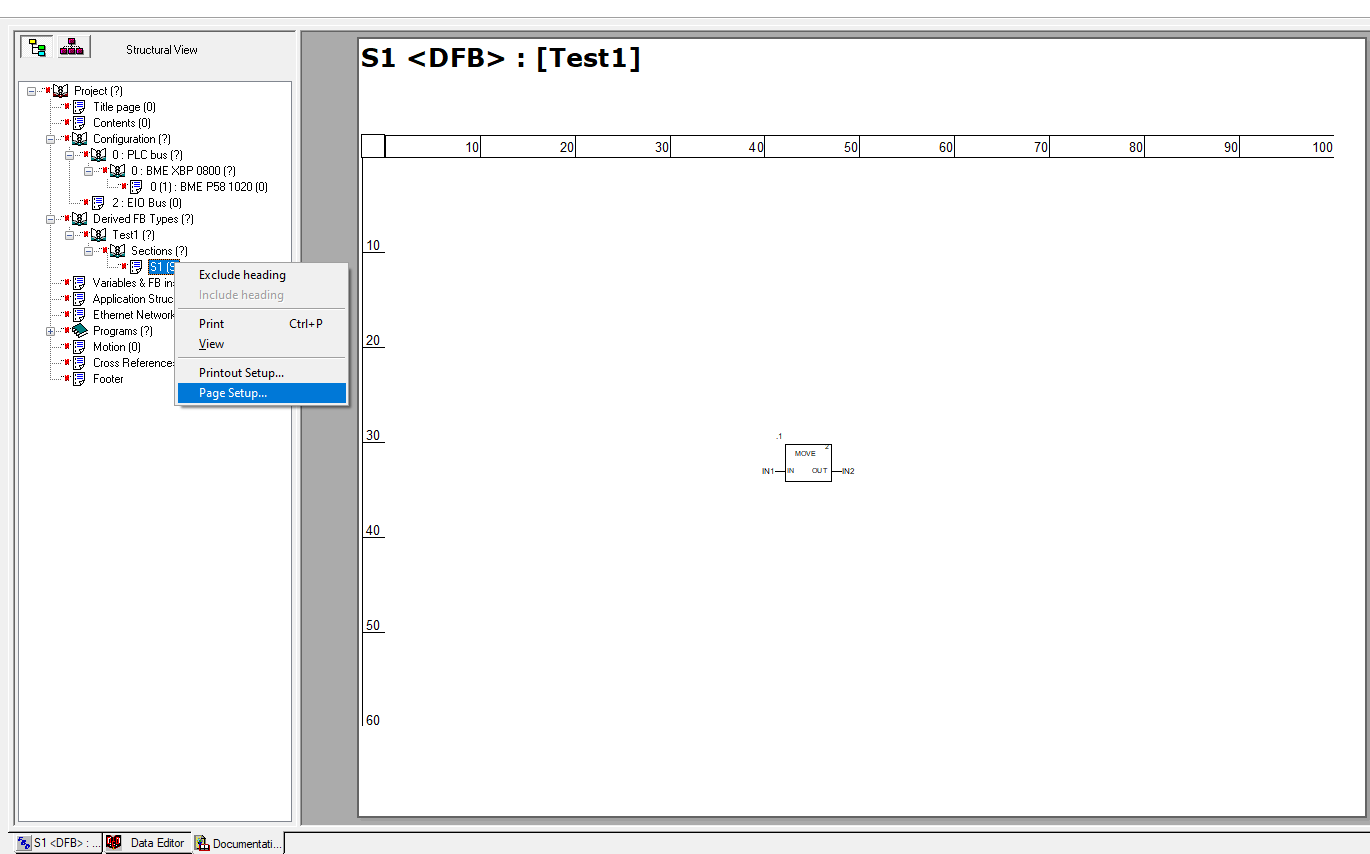

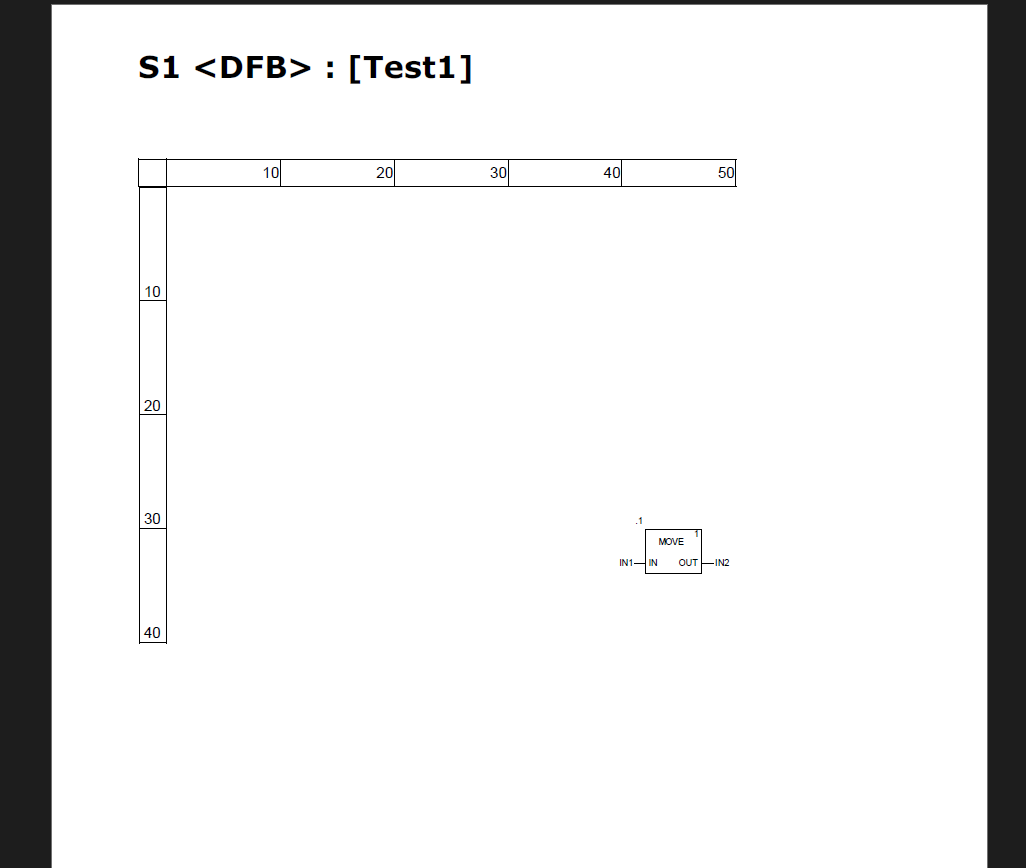

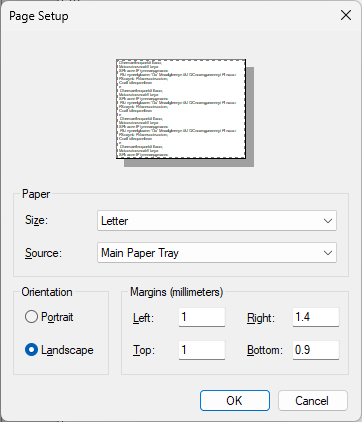

Unfortunately, we are limited to a certain number of columns and rows (space) per page type. You can adjust the page setup and margins to fit as much of the logic as possible:

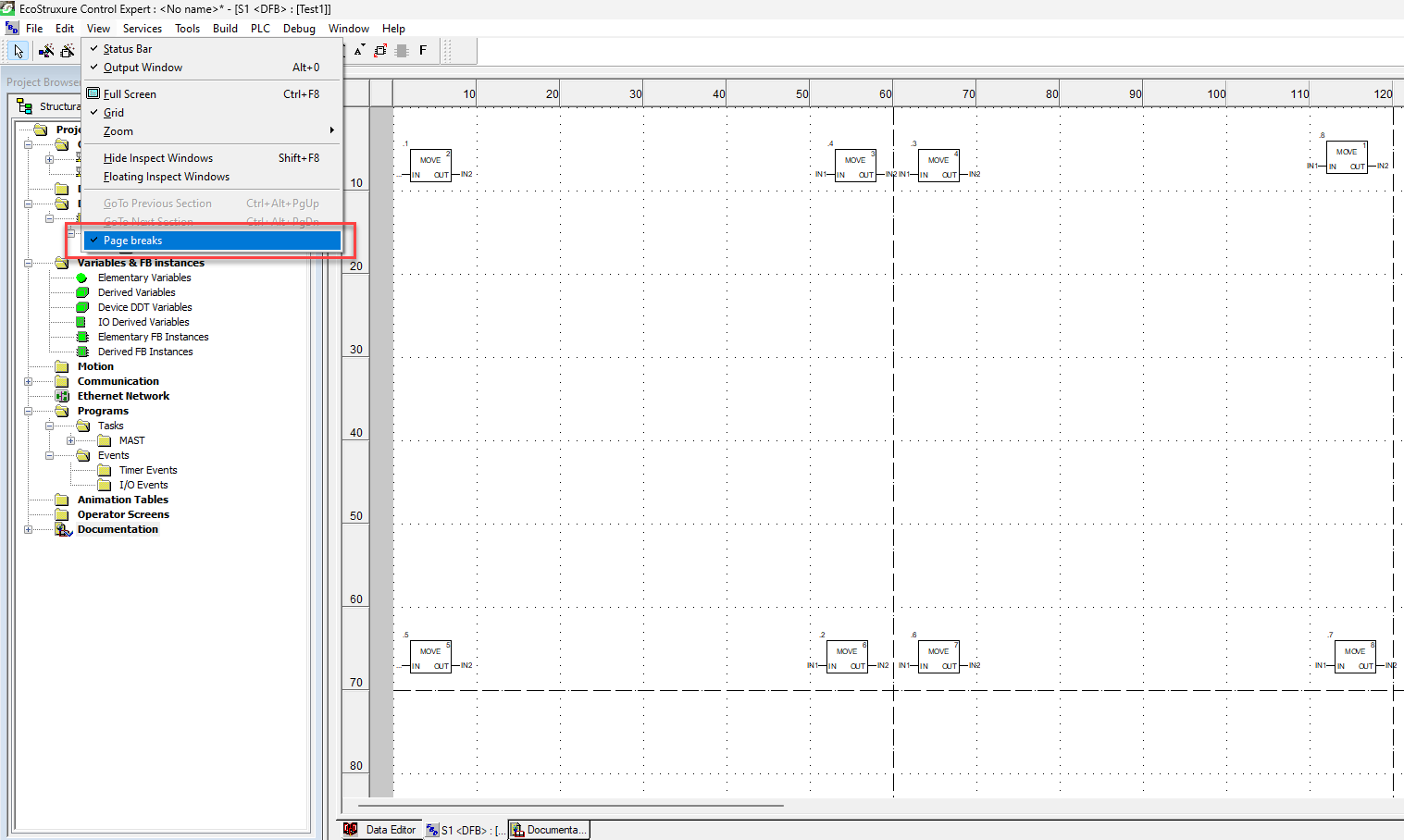

You can also enable Page Breaks to view how each page is divided. This feature helps you understand what content will appear on each page:

These are the available features you can use when working with the project printout.

Released for: Schneider Electric Belgium
