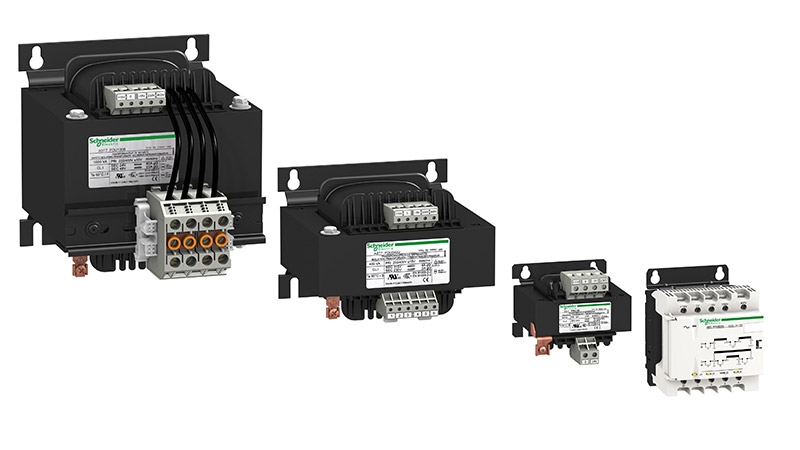

Single phase transformers
Modicon ABT7/ABL6 single-phase transformers are designed to supply control circuits in electrical equipment from a 230 Vac or 400 Vac supply (depending on the model) at 50 or 60 Hz. ± 15 V connectors at the primary ensure adaptation to the actual values of the supply networks to which they are connected. Modicon single-phase transformers are available in 3 ranges: ABT7ES Economic, ABL6TS Optimised, and ABT7PDU Universal.
Benefits
Benefits
Compactness
Simplicity
Features
Features
Facts of Modicon ABT7, ABL6
Universal range 25 VA to 2500 VA - Double winding
- Fixing on omega rail (depending on model) or panel (screw)
- Secondary earthing by plug-in jumpers (depending on model)
- Signalling LED
- Operating temperature: +60°C
- Series/parallel wiring of secondary windings by plug-in jumpers (depending on model)
- Fixing on panel (screw) or on omega rail (option depending on model)
- Operating temperature: +50°C
- Fixing on panel (screw)
- Operating temperature: +40°C
Applications
Applications
Machinery
Explore moreAutomobile
