FA269257
How can we help you today?
Describe pin out detils of ULP RJ45 Pin Connection cable used in Compact NSX.

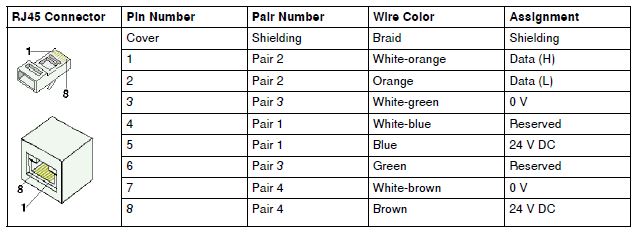

The ULP cable uses an RJ45 connector whose pin connection is described in the table below:
Released for:
Schneider Electric India
Attachment(s)
RJ45 Pin.JPG.jpg
[43.13 KB]
Published on:
31/8/2015
Last Modified on:
9/8/2023
Explore more
Range:
Compact NSX <630
