What are the specifications of DigitalInputs in WIMO6CP10
The unit can collect status information and alarm signals via 3 digital inputs (terminals X2B: 3-5). The three digital inputs in
WIMO use an internal 12 V dc auxiliary voltage of the unit (terminal X2B: 8).
Potential-free contacts must be available in the protected object for transferring status information to the unit.

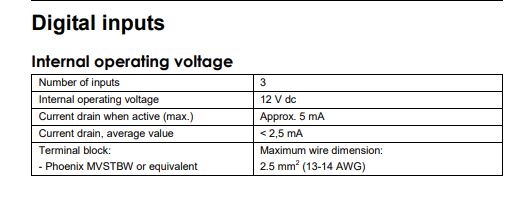

Refer the attached snapshot.

Schneider Electric India

Attachment(s)
WIMO6CP10_DigitalInputs.JPG.jpg [28.02 KB]
