The digital input and digital output are parallel in hybrid DI/DO module. Never connect,
configure, operate or control DO (trip relay) output if Digital input is in use. Should the
control of Trip relay happen the output contact will short-circuit Digital input and will lead to
equipment damage and loss of data.

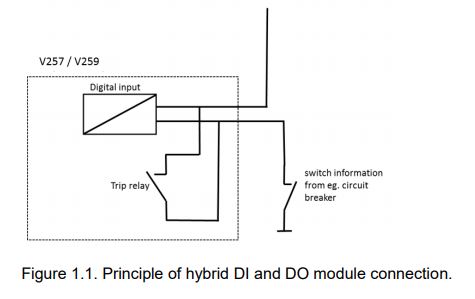

refer the snapshot attached
configure, operate or control DO (trip relay) output if Digital input is in use. Should the
control of Trip relay happen the output contact will short-circuit Digital input and will lead to
equipment damage and loss of data.
refer the snapshot attached
