In Tesys T we cn have maximum 10 logic

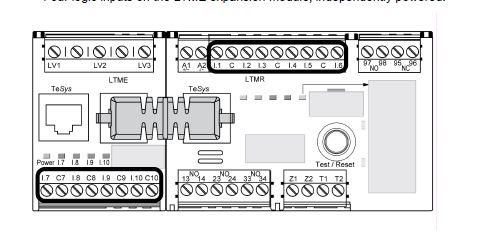

10 logic inputs maximum are provided:
Six logic inputs on the LTMR controller, internally powered by the LTMR.
Four logic inputs on the LTME expansion module, independently powered
The controller LTMR has six logic inputs:
Available via field wiring terminals I.1- I.6.
Internally powered by the control voltage of the LTMR controller (the input voltage is the same voltage
as the controller supply voltage.)
Isolated from the inputs of the LTME expansion module.
The three Common (C) terminals of the LTMR controller are connected to the A1 control voltage via an
internal filter, as shown in the wiring diagram examples
The four logic inputs on the LTME expansion module (I.7 - I.10) are not powered by the control voltage of
the LTMR controller.
10 logic inputs maximum are provided:
Six logic inputs on the LTMR controller, internally powered by the LTMR.
Four logic inputs on the LTME expansion module, independently powered
The controller LTMR has six logic inputs:
Available via field wiring terminals I.1- I.6.
Internally powered by the control voltage of the LTMR controller (the input voltage is the same voltage
as the controller supply voltage.)
Isolated from the inputs of the LTME expansion module.
The three Common (C) terminals of the LTMR controller are connected to the A1 control voltage via an
internal filter, as shown in the wiring diagram examples
The four logic inputs on the LTME expansion module (I.7 - I.10) are not powered by the control voltage of
the LTMR controller.
