What is the Pinout of PMEPXM0100 Profibus DP port connector.

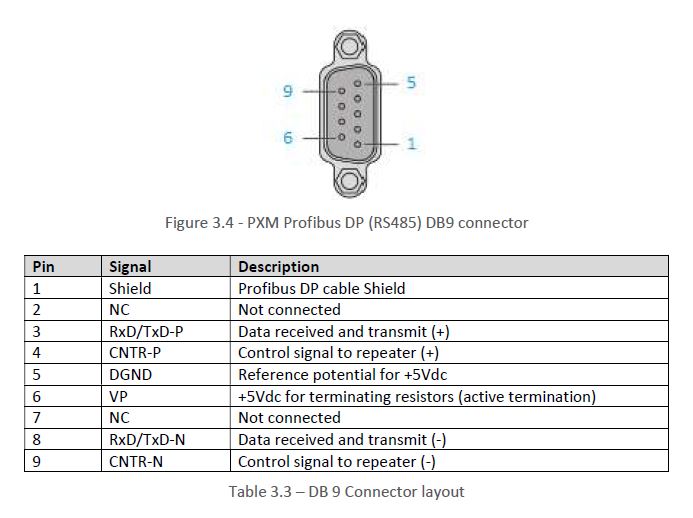

The figure and table below give the PMEPXM0100 Profibus DP port connector pin assignment:

1
