Step by Step Guide for EROE Studio license purchase and creating the Site Code:

1. To purchase the EROE STUDIO licensed software, please reach out to the designated sales representative in your area.
2. In the Windows Search Bar, look for " EcoStruxure RTU Operations Expert 2023.1 Register" or select Start windows, then go to Schneider Electric folder and click on the  " EcoStruxure RTU Operations Expert 2023.1 Register"

3. Select Softkey and Click Check button.

4. Select Change License button

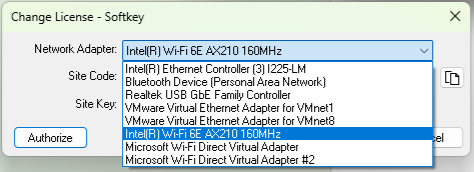

5. Select the correct Network Adaptor for your system using the Dropdown menu.

6. Copy the Site Code, you can click on the copy icon next to the textbox.
   1. Note that there is an empty Site Key textbox, this is where you will put the Site Key to authorize a license.

7. The Site Code should be included in the request for a license.
8. A Site Key will be provided by the sales rep, then navigate back to the popup box from Step 4.
9. Paste the Site Key provided into the appropriate field, then click Authorize to apply the license.
