Discover PIX Active
Discover PIX Active

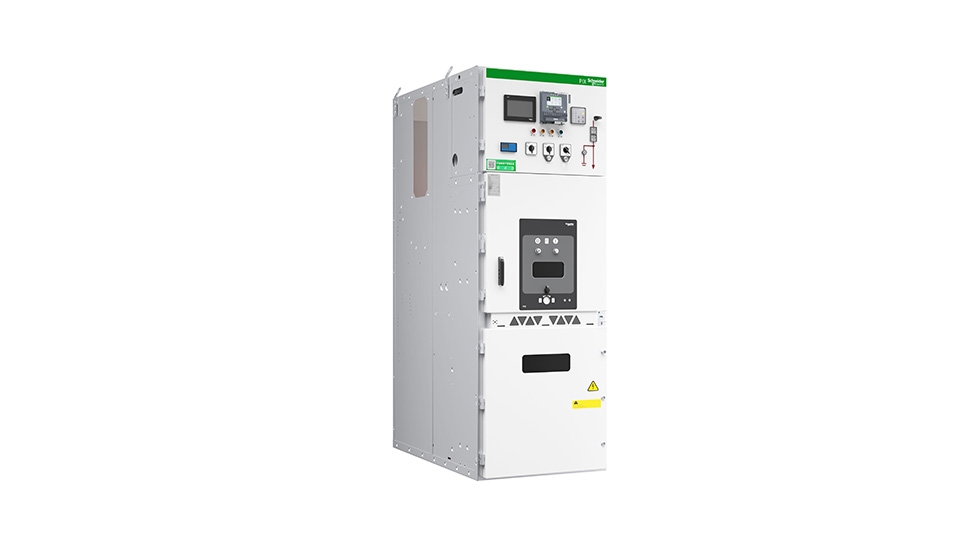

PIX Active is a medium-voltage switchgear solution designed for the requirements of both public and industrial distribution systems.It leverages over 50 years of industry experience in the design of medium voltage switchgear, using a vacuum circuit breaker.PIX Active combines scalable sensors with condition monitoring and control functions to minimise maintenance, improve safety and minimise unplanned downtime.
Benefits of PIX Active
Benefits of PIX Active
Flexibility and simplicity
Safety
Reliability
Features
- Compact design with high-performance vacuum circuit breaker technology.
- Up to 4000 A / 40 kA for 12 / 17.5 kV.
- Up to 2500 A / 31.5 kA for 24 kV.
- Single, insulated busbar.
- Loss of Service Continuity - LSC 2B PM.
- Internal Arc Classification (IAC) AFLR duration 1 s according to IEC62271-200.
- Floor or top cable connection.
- Back-to-wall or rear access configurations.
Combine your PIX with EcoCare membership*
Combine your PIX with EcoCare membership*
Protect your PIX with EcoCare
With EcoCare membership*, a next-generation service plan, you gain exclusive support for your equipment from day 1 and throughout its entire lifecycle. For minimal investment compared with your overall CapEx, you'll enjoy 24/7 remote monitoring and alarm management, and access to technical expertise, on-site and remotely, as defined by service level agreement (SLA). This proactive approach helps reduce the risk of unexpected downtime and related costs, while enhancing uptime, safety and efficiency of your operations.
Active Switchgear with EcoCare Membership* - Unlocking the Power of Connectivity
Even the most reliable switchgear can face unforeseen failures in the early years of operation, often due to unpredictable external factors like installation environment and operational practices. These issues can lead to unplanned downtime and disruptions to your business.Overcome downtime concerns connected to your electrical distribution equipment through EcoCare Membership* with exclusive support and innovative digital services.
Applications
Industry
Explore morePower generation
Explore moreMarine
Explore moreInfrastructure
Explore more
White paper
White paper
How to Transform Electrical Distribution with Data
Discover in this Guide the four key pillars of electrical distribution efficiency that will help ensure your business runs at peak performance.
Videos
Videos
Active Plus MV Switchgear in 60 Seconds
Digital transformation of Power Systems
Thermal sensors How-to videos
Dive deeper into thermal sensors technical features with this series of videosWatch the full playlist >
Additional resources
Additional resources
Similar products you might be interested in
Related services you might be interested in
*Please verify the availability of EcoCare in your region through a local services sales representative. If EcoCare is not yet available, leverage the EcoStruxure Service Plan.
