About Altivar Process ATV600
The next generation of variable speed drives, Altivar Process is designed to deliver IIoT benefits. • A smart, connected EcoStruxure-ready drive with built-in intelligence to gather data and share information at the enterprise level. • Improve operational efficiency, profitability and reduce the total cost of ownership (TCO).• Offers range from 0.75 kW to 2600 kW in all voltages with easy-to-use and consistent experience for usability, functionality, performance, and flexibility.
Benefits of Altivar Process ATV600
Benefits of Altivar Process ATV600
Process optimisation
Bring intelligence to your system by enabling your assets to provide advanced process data for smarter operations.
Enhance equipment effectiveness
Improve productivity and availability by up to 20%.
Energy management
Optimise and reduce your energy consumption by up to 30%.
Asset management
Reduce downtime and maintain the performance of your main assets.
We have the offers for you
Altivar Process ATV600

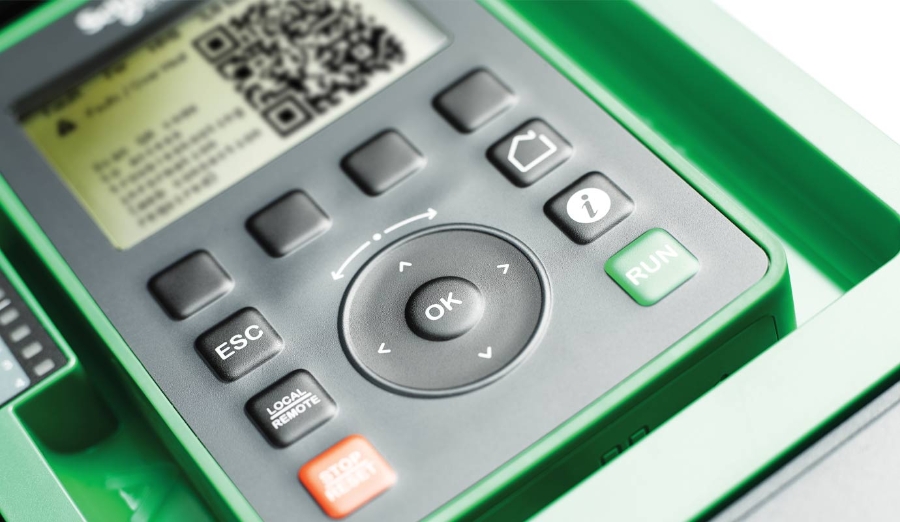

ATV600: drives focuses on fluid management, processing and energy-saving depending on customer requirements. For cabinets, Altivar Process drives are available in wall-mounting and floor-standing integrated solutions.These Process drives provide a wide range of integrated functions, such as:• Safety and automation functions for the most demanding applications.• Various optional fieldbus modules are available for seamless integration into the main automation architectures.• I/O standard facilitates adaptation of specific applications.• Intuitive commissioning through graphic display terminal.• Embedded web server for remote monitoring and control access.• Integrated harmonic filters help in the protection of grids and save energy.• Installation of EMC conformity through integrated EMC filters.
Wall mounting
Altivar process Wall-mounted is a ready-to-use Drive for easy integration inside an enclosure or directly on a wall in an electrical room. It is available in different protection degrees and a wide range of voltages and power.• IP20 and 21/UL Type 1 from 0.75 kW to 315 kW/1 HP to 500 HP at 380...480 V.• IP20 and 21/UL Type 1 from 2.2 to 90 kW/3 to 125 HP at a 500...690 V.• IP55 from 0.75 to 90 kW/1 HP to 125 HP at 380...480 V.
Floor standing
The Altivar Process Floor-Standing Drive IP21/IP54 is a compact and efficient solution. It combines power and control modules, semiconductor protection fuses, line chokes, and a filter to protect the motor. Accessible busbars simplify the motor and power wiring.The IP54 variant includes a main switch and a system to separate cooling airflow for better performance in polluted environments and managing thermal stress in plant rooms.
Driving sustainability forward with Altivar Variable Speed Drives
Improve energy efficiency and sustainability with Altivar variable speed drives. Manage motor control applications up to 20 MW with products ranging from compact products to custom-engineered solutions.
Altivar Process Drives | Advanced Functions & Reliability for MMM
Drive sustainable industrial operations with Altivar Process Drives from 0.75 kW to 2600 kW in Low Voltage and up to 20MW in Medium Voltage.
Altivar Process ATV600 Variable Speed Drive
Altivar Process ATV600 Drives Sustainability, Cybersecurity and Asset management in one single solution. Ideal for segments including Water & Wastewater, Marine or Buildings, from 0.75 kW to 2600 kW.
EcoStruxure™ Plant and Machine
Altivar Process is a part of EcoStruxure Plant and Machine solutions. Truly open automation, agnostic software, and unique solutions for sustainability help bring tomorrow’s industries to life today.
How-to videos
How-to videos
Getting started with Altivar Process ATV600
Using the webserver
Setting a maintenance event
Setting the ramps switching
Features
Features
• Power range: 0.75 kW to 2600 kW• Voltage range: 200 – 400 – 690 V Three-phase• Motor type: Induction, PM, Reluctance, IE2-IE3-IE4 motors• Motor control type: Open-loop• THDI: THDi < 48%(Embedded), THDi<10% or THDi<5% with Passive filter or multi-pulse supply, THDi<= 3% with Low Harmonic module
• Pump efficiency tracking• Multi master-slave pump management• Pump and pipe protection• Fan management• >95% accurate energy consumption measurement
• STO: Safe Torque Off
• Embedded: Ethernet, Modbus• Options: Ethernet IP, Modbus TCP, CANopen (RJ45 Daisy chain, Sub-D, screw terminals), PROFINET, Profibus DP V1, EtherCAT, DeviceNet, PowerLink, BACnet MS/TP
• Water and wastewater applications• Centrifugal and volumetric pumps• Building applications• Food and beverage applications• Compressors• Fans• Energy efficiency
Altivar Process ATV600 success stories
Altivar Process ATV600 success stories
Herning Water - Optimising water utility's process
Herning Water Utility has turned to Altivar Process to help them optimise their process and reduce their energy consumption.
Veolia - Delivering sustainable water treatment
To cost-effectively deliver reliable critical service while also protecting the environment and public health, Veolia implemented an IIoT-enabled EcoStruxure solution from Schneider Electric with Altivar 600 Drives.
