Discover EasyPact CVS

Benefits of EasyPact CVS

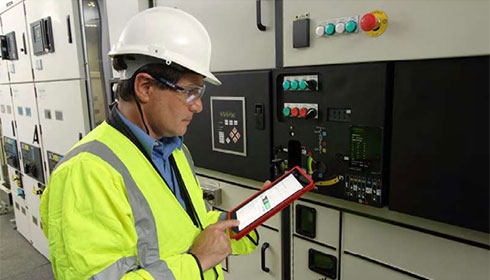

Panel builders

• Only two frame sizes up to 630A• Common accessories for the complete range• Line load reversibility for the entire range• Suitable for class II switchboards
End users

• Isolation as a standard feature enhances safety• Excellent current limiting capability reduces stresses on cables, busbars, and loads• Continuously rated accessories increase system reliability

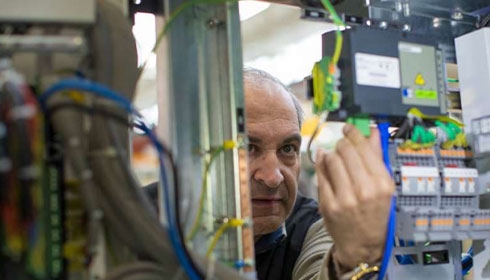

OEMs

• High endurance and maintenance-free operation assure the continuous performance of machines• Unique common accessories help standardization of components
Contractors

• Sufficient pole pitch helps to terminate Copper and Aluminium busbars or cables• Easy availability of the product due to a small number frame size• Designed to perform in demanding applications

Features

Facts about EasyPact CVS

• Rated current from 16 to 630 A • Breaking capacity from 25 to 50 kA at 400/415 V • 3 and 4 pole versions • 3 frame sizes • Thermal-magnetic and electronic protection available for the entire range • Extended, adjustable thermal protection from 0.7 to 1 time (TMD) or 0.5 to 1 time (electronic) the rating of the trip unit • Common accessories and auxiliaries with other Schneider Electric MCCB offers • Suitable for isolation • Earth-leakage protection by associated Vigi Module • Switch-disconnector versions are also available • Compliance with international standards: IEC 60947-2, CCC, EAC, and other local certifications • Green Premium product
