Discover Canalis KT

Benefits of Canalis KT

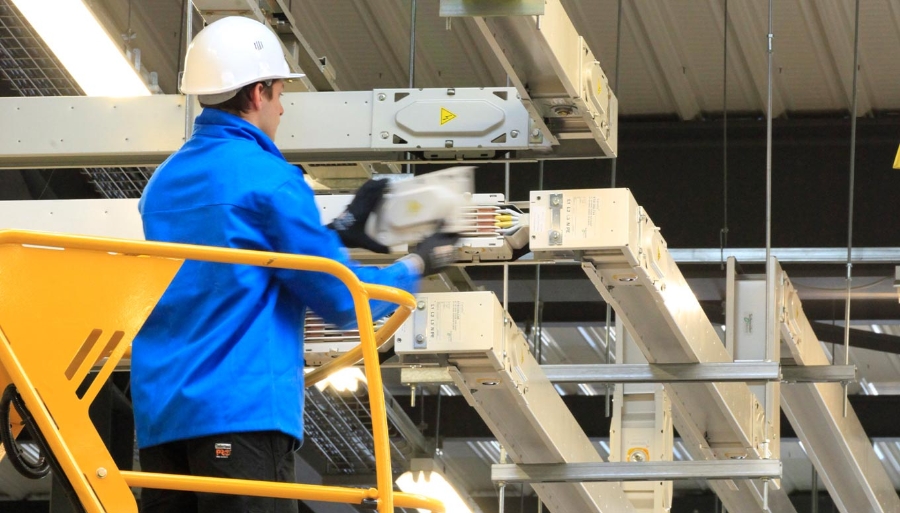

Installation and maintenance

• Easy installation with Prefabricated elements (Feed units, straight lengths and change direction elements) • Quick, light, and easy to assemble. • Lifetime and no maintenance guaranteed for joining units.
Operating

• New plug-in unit can be installed where it is needed without interruption and busbar trunking under energised condition
Safety

• Fool proof system avoids unit being installed or removed under load • Safe and reliable for personnel and equipment
Environment friendly

• Halogen-free: Canalis does not emit any fumes or toxic gases in the event of a fire • Can be dismantled, re-used and is entirely recyclable • Sustainable: helps conserve energy and natural resources by being reusable, recyclable and reduces line losses by 20%

Features : Canalis KT

General specifications

• Power distribution: triple-phase + neutral + protective earth • Max operational voltage / Rated insulation voltage: 690 V AC • Degree of protection (IEC 60529): IP55, IK08 • Coating: pre-lacquered white RAL 9001

Line components

• Current ratings (Inc): • Copper busbar 800 to 6300 A • Aluminium busbar: 800 to 5000 A • Rated permissible peak current (Ipk): 64 to 264 kA • Length: 2 m, 4 m, or customised (0.5 to 3 metres)

Tap-off units (outputs)

• On both sides, inter-distance: 0.5 or 1 metre • Hot-pluggable • Rated current • plug-in: 25 to 630 A • bolt-on: 400 to 1250 A • Made to host Acti9 or ComPacT circuit-breakers
