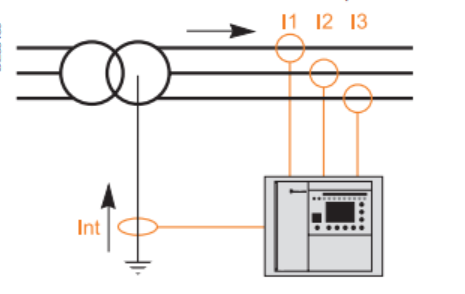

Detection of phase-to-earth faults on 3-phase windings with earthed neutral, by
comparison of residual current calculated from the 3 phase currents and residual
current measured at the neutral point.

Characteristics

• instantaneous tripping
• percentage-based characteristic with fixed slope and adjustable low set point
• more sensitive than transformer or machine differential protection.
