SCADAPack X70 Intermodule Cables Selection

SCADAPack X70 Series with 6000 I/O (20-pin to 20-pin) Expansion module cable

6000 expansion modules do include a 2-inch inter-module cable inside the box. A longer cable can be ordered separately if it is required

Expansion module cable part number:

• TBUM297918    Shielded intermodule cable, 12 inches (0.3m) long
• TBUM297919    Shielded intermodule cable, 18 inches (0.45m) long
• TBUM297920    Shielded intermodule cable, 24 inches (0.61m) long
• TBUM297921    Shielded intermodule cable, 30 inches (0.76m) long
• TBUM297922    Shielded intermodule cable, 45 inches (1.14m) long
• TBUM297923    Shielded intermodule cable, 72 inches (1.82m

SCADAPack X70 to 5000-Series I/O Modules

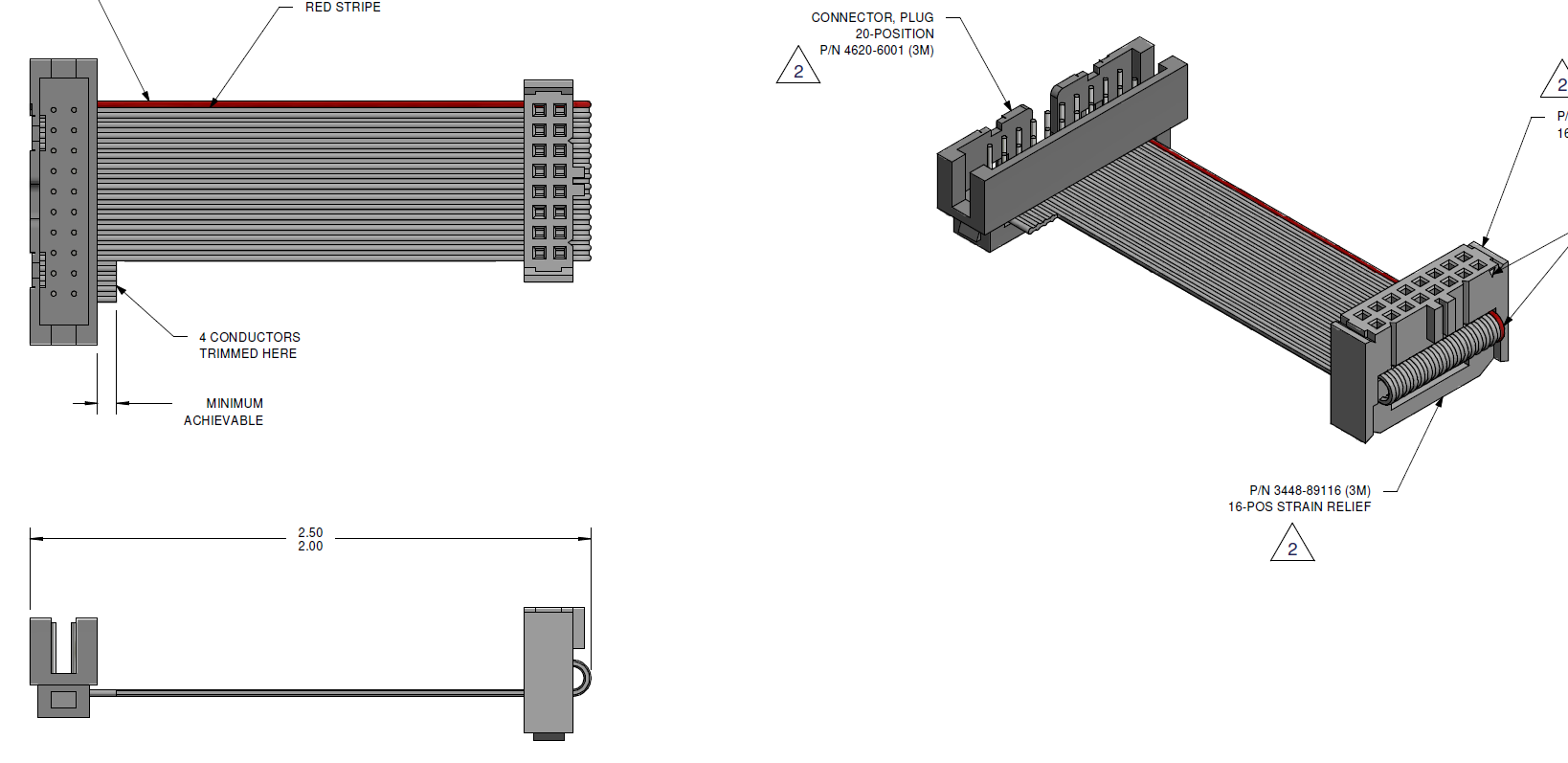

SCADAPack X70,  SCADAPack 53xE, and 6000 series I/O expansion modules provide a 20-pin I/O bus connector while 5000 series modules provide a 16-pin connector. Use the adaptor provided (part number TBUM297138) to transit from a 20-pin connector to a 16-pin connector. The length of the cable is between 2 and 2.5 inches as shown below.

In case your installation requires a longer cable, you will need extension cables. An example of the setup is provided below.


Example:
SCADAPack 53xE or 47x or 57x RTU or 6000 series I/O (with provided 20-pin IMC female connector)

to

TBUM297138 Adapter cable (20-pin male to 16-pin female IMC)

to

TBUM297212 IMC cable extension adapter for 5000-Series I/O modules (16-pin male to 16-pin male IMC)

to

One of the six IMC cables listed below for 5000-Series I/O modules (16-pin female to 16-pin female IMC)

• TBUM297269 Shielded intermodule cable, 12 inches (0.3m) long
• TBUM297192 Shielded intermodule cable, 18 inches (0.45m) long
• TBUM297193 Shielded intermodule cable, 24 inches (0.61m) long
• TBUM297131 Shielded intermodule cable, 30 inches (0.76m) long
• TBUM297162 Shielded intermodule cable, 45 inches (1.14m) long
• TBUM297174 Shielded intermodule cable, 72 inches (1.82m) long

to

A 5000-Series I/O module (16-pin male IMC)
